*Water level sensor INDESIT ARISTON 5 contacts with wiring C00381612

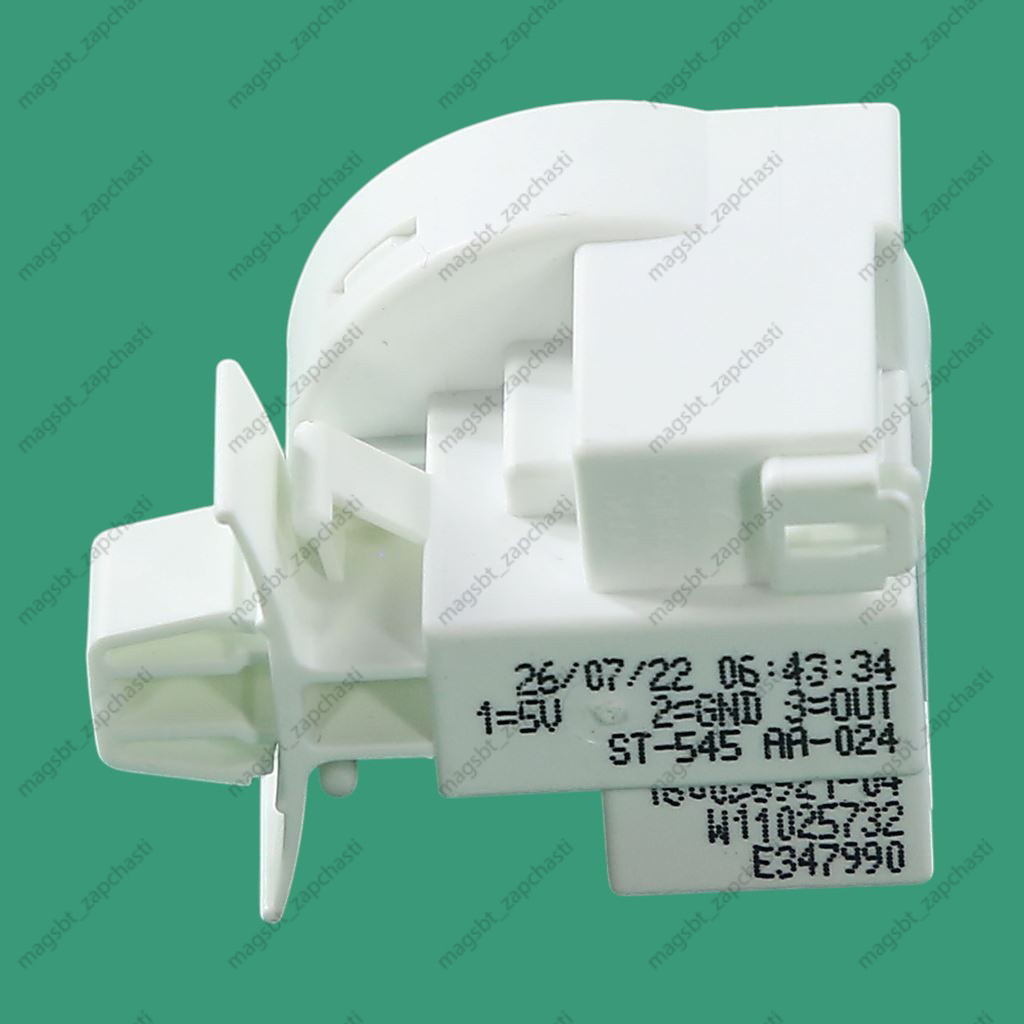

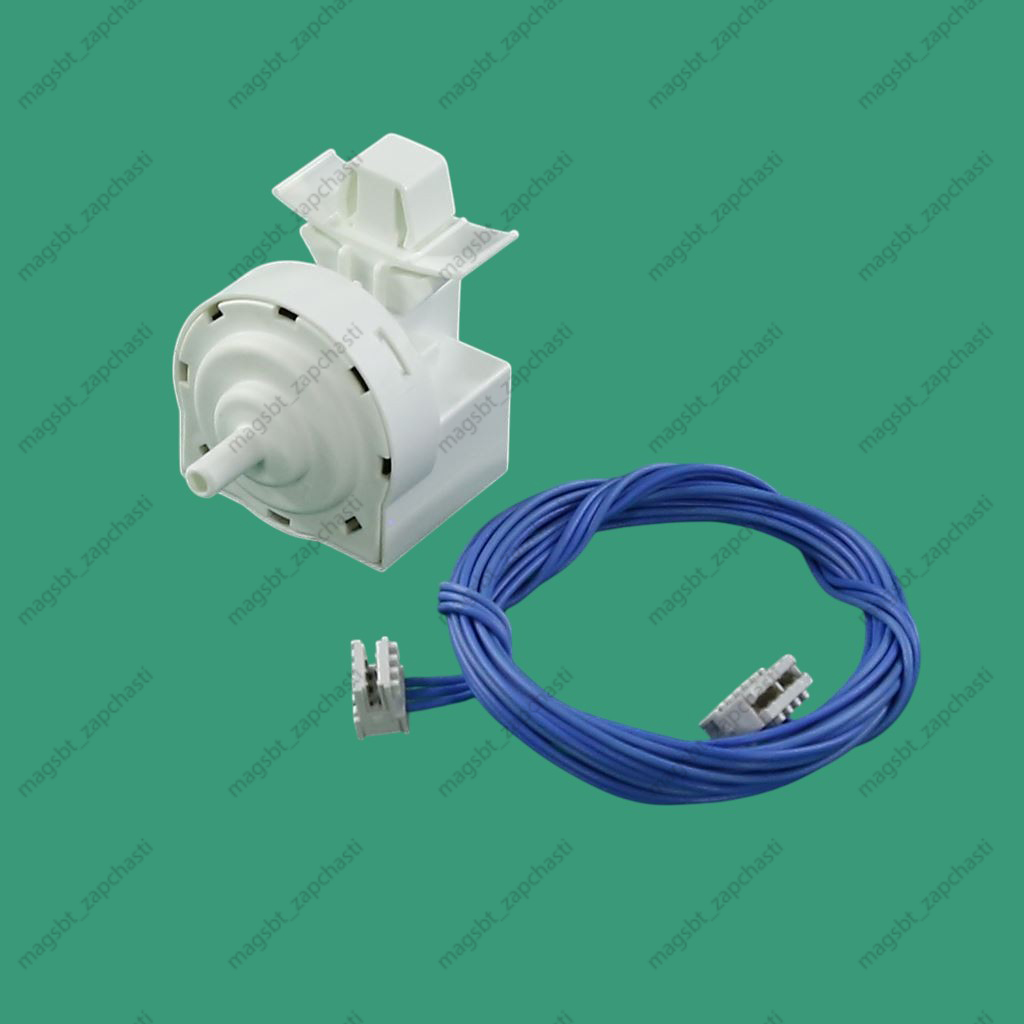

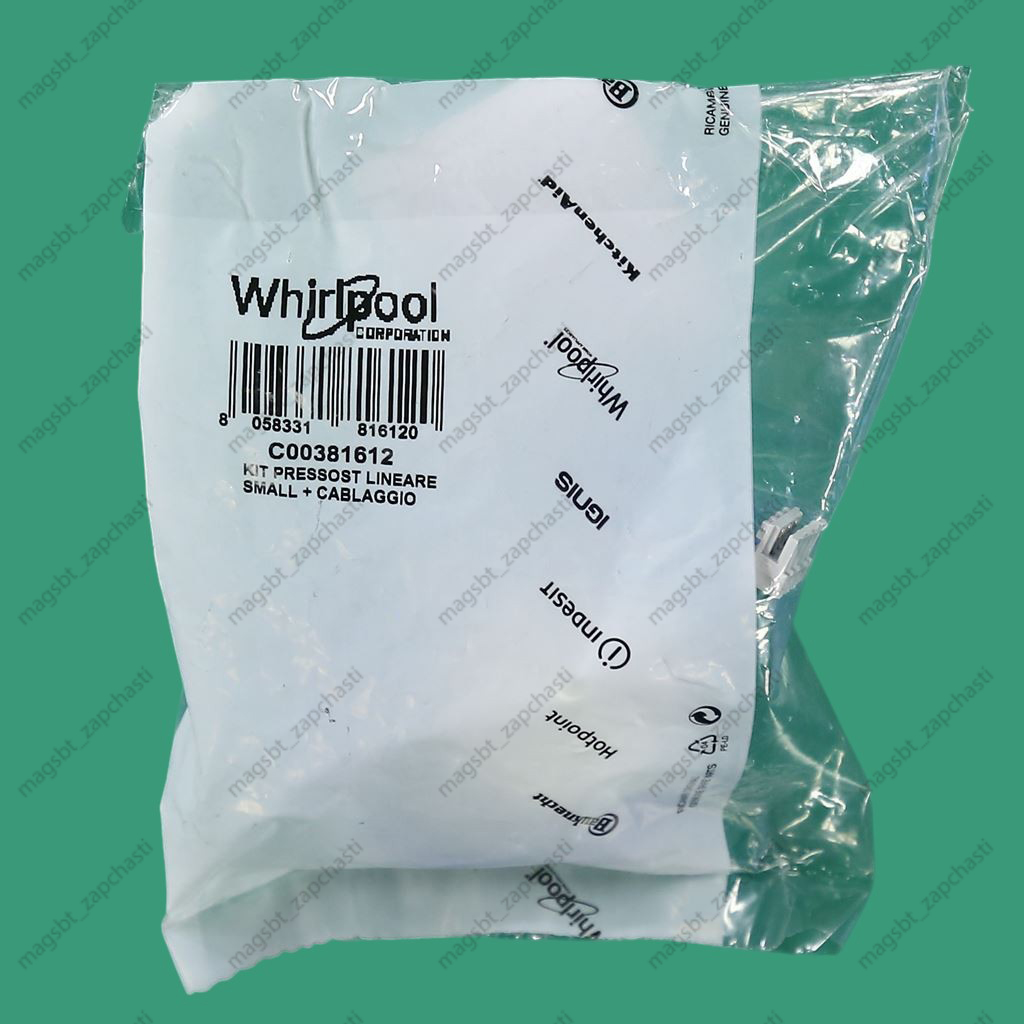

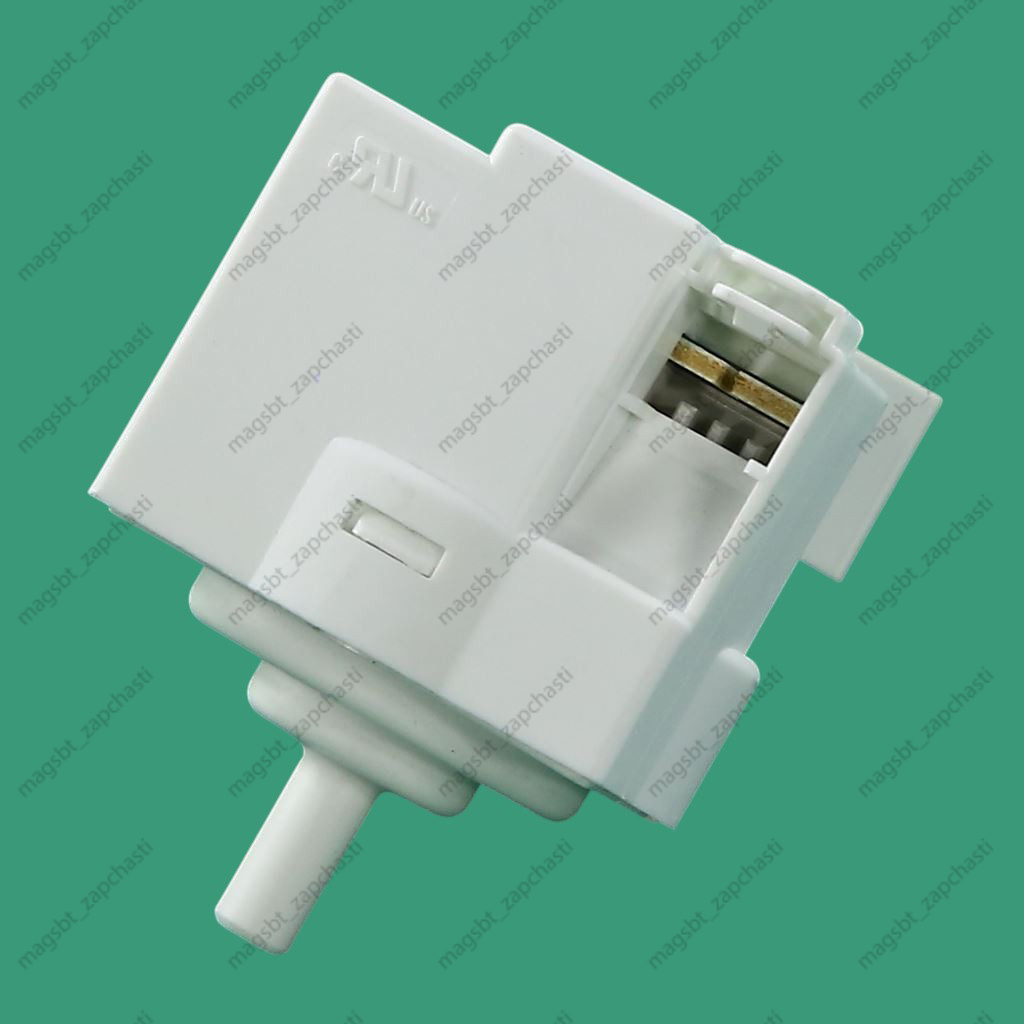

*Water level sensor INDESIT ARISTON 5 contacts with wiring C00381612 photo 2 -

*Water level sensor INDESIT ARISTON 5 contacts with wiring C00381612 photo 3 -

*Water level sensor INDESIT ARISTON 5 contacts with wiring C00381612 photo 4 -

Превью запчасти *Water level sensor INDESIT ARISTON 5 contacts with wiring C00381612 photo 4 -

Code: 14899 | Art: C00381612

under the order

Characteristics

Manufacturer

—

Indesit Ariston

Country of origin

—

Italy

Compatible models

—

C00381612

Number of contacts

—

They buy with this product

This water level sensor for a washing machine controls water intake into the tank and sends a signal to the control system when the required level is reached. The design has 5 contacts and is supplied with wiring. Article: C00381612, 14899; alternative articles: 022041, 381612, РЕЛ-016, КХ-0008468, PSW203ID. It may also be referred to as a level meter, relay, pressure switch, or controller. Spare part compatibility depends on the appliance model and year of manufacture — if in doubt, check with a manager.

Product characteristics

Manufacturer	Indesit Ariston
Country of origin	Italy
Compatible models	C00381612
Number of contacts	5
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 21 voice

Indesit Ariston C00381612 5-contact water level sensor

The water level sensor, also called a pressure switch, controls water filling in an Indesit Ariston washing machine tub. As the water level changes, pressure is transmitted through the tube; the relay switches contacts and sends the signal to stop water intake. This version includes wiring and a 5-contact connection.

Suitable for

For replacing a water level sensor in compatible Ariston and Indesit washing machines where code C00381612 and a 5-contact part with wiring are required.

Compatible brands and models

Equipment brand: Ariston
Equipment brand: Indesit
Equipment model: C00381612

Key specifications

Part number: C00381612, 14899.
Alternative part numbers: 022041, 381612, РЕЛ-016, КХ-0008468, PSW203ID.
Number of contacts: 5.
Manufacturer: Indesit Ariston; manufacturer country: Italy.
Version: with wiring.

Before ordering

Before ordering, compare the code on the old pressure switch, the 5-contact connector, and the presence of wiring.

Applicability of the product to models of household appliances

Enter the first characters of the model in the search line below and the list will be filtered.
You can click on the model name to search for all spare parts for this model of equipment.

Indesit IWB50651CECOEU Indesit IWB50651CECOEU (46788360000) Indesit IWB5065BIT/E Indesit IWB5065BIT/E (46619468700) Indesit IWB5065BIT/E (46619468800) Indesit IWB5065BIT/E (46619469000) Indesit IWB5065EU/E Indesit IWB5065EU/E (46619458700) Indesit IWB5065EU/E (46619458800) Indesit IWB5065EU/E (46619458900) Indesit IWB5065EU/E (46619459000) Indesit IWB5105EU/E Indesit IWB5105EU/E (46619518700) Indesit IWB5105EU/E (46619518800) Indesit IWB5105EU/E (46619518900) Indesit IWB5105EU/E (46619519000) Indesit IWB51231ECOU Indesit IWB51231ECOU (46788550000) Indesit IWB51231ECOUK Indesit IWB51231ECOUK (46788550000) Indesit IWB5123UKE Indesit IWB5123UKE (46670298700) Indesit IWB5123UKE (46670298800) Indesit IWB51251CECOEU Indesit IWB51251CECOEU (46788520000) Indesit IWB51251CECOEU (46788520100) Indesit IWB5125EU/E Indesit IWB5125EU/E (46619538700) Indesit IWB5125EU/E (46619538800) Indesit IWB5125EU/E (46619539000) Indesit IWB6103EU/E Indesit IWB6103EU/E (46619578700) Indesit IWB6103EU/E (46619578800) Indesit IWB6103EU/E
