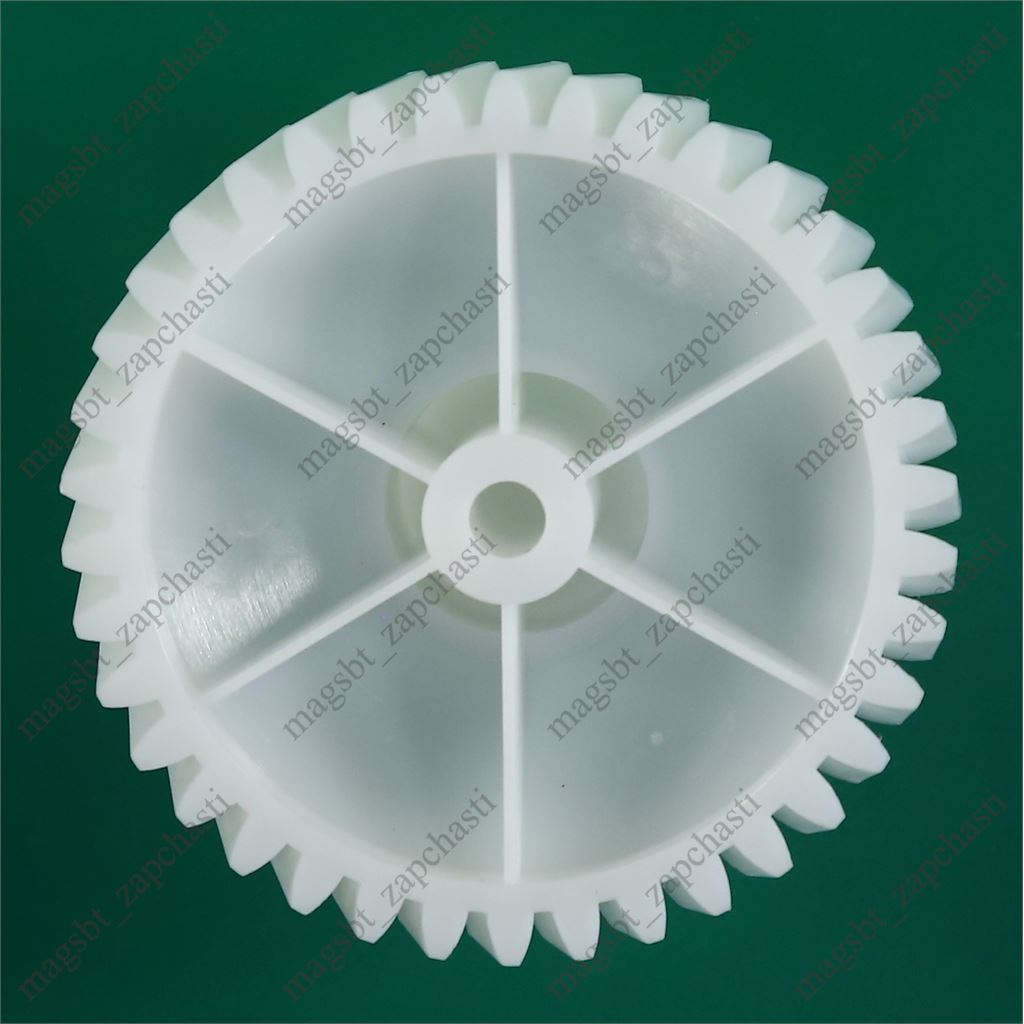

*Meat grinder gear REDMOND D81/25 mm h56 mm z38/12 helical/straight RMG-1203

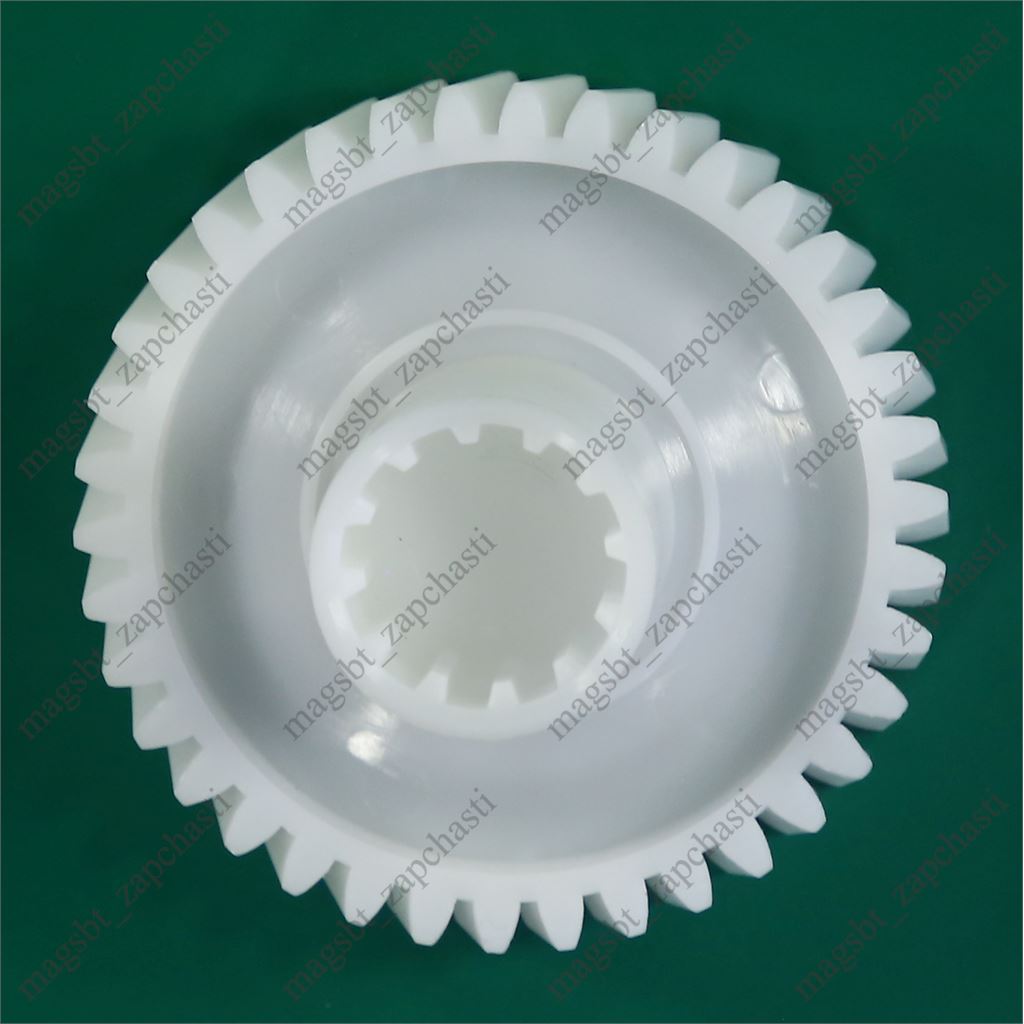

*Meat grinder gear REDMOND D81/25 mm h56 mm z38/12 helical/straight RMG-1203 photo 2 -

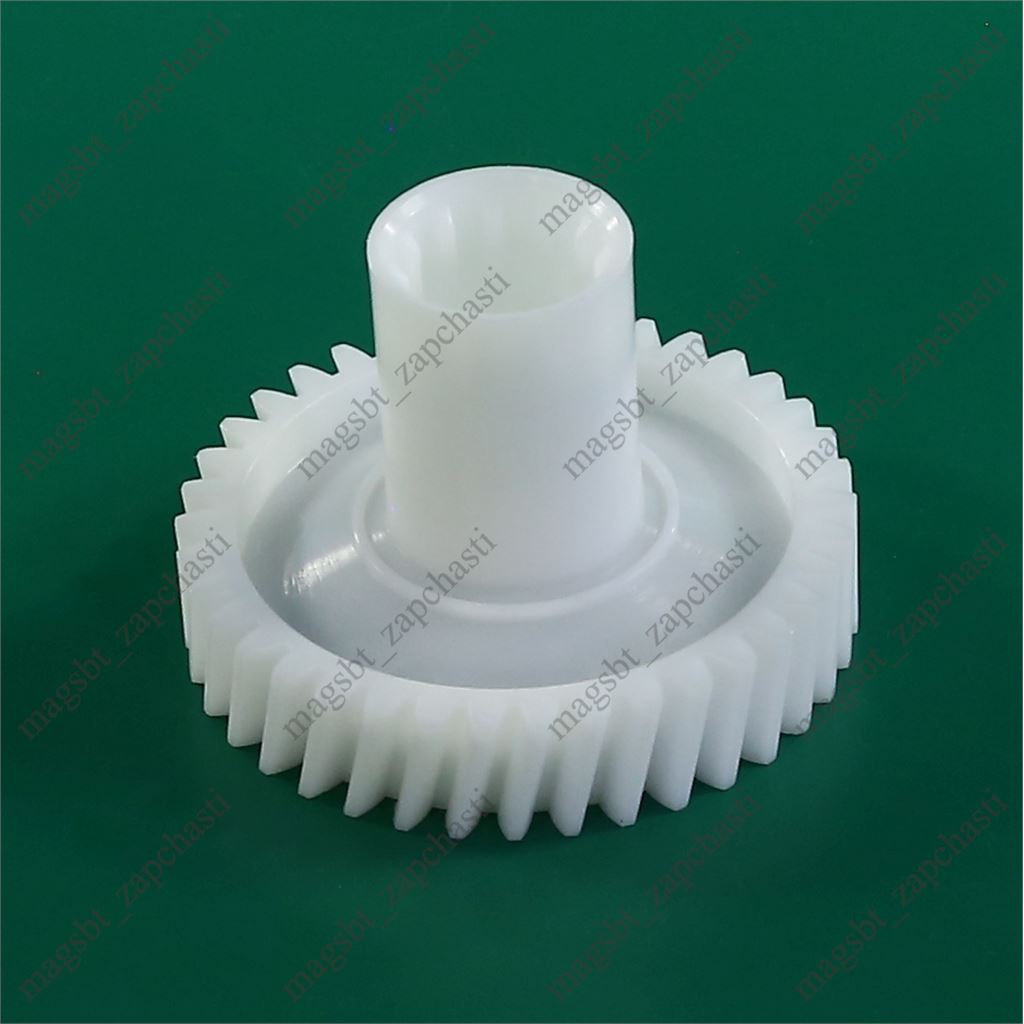

*Meat grinder gear REDMOND D81/25 mm h56 mm z38/12 helical/straight RMG-1203 photo 3 -

Превью запчасти *Meat grinder gear REDMOND D81/25 mm h56 mm z38/12 helical/straight RMG-1203 photo 3 -

Code: 16559 | Art: RD005

under the order

Characteristics

Manufacturer

—

Redmond

Country of origin

—

China

Color

—

White

Material

—

Plastic

Shaft height

—

All characteristics

They buy with this product

This meat grinder gear is used in the gear transmission of the drive assembly. The part is made of white plastic; outer diameter is 81 mm, inner diameter is 25 mm, height is 56 mm, and shaft height is 17 mm. The lower row has 38 helical teeth, and the upper row has 12 straight teeth. Article numbers: RD005, 16559. Alternative article numbers: 32153, 3441, 005, TWG0001659, 00000100826. Country of manufacture: China. Spare part compatibility depends on the appliance model and year of manufacture — if in doubt, check with a manager.

Product characteristics

Manufacturer	Redmond
Country of origin	China
Color	White
Material	Plastic
Shaft height	17
Compatible models	RMG-1203
Height, mm	56
Number of upper teeth	12
Number of lower teeth	38
Outer diameter, mm	81
Inner diameter, mm	25
Inner diameter, mm	30.5
Tooth direction	Lower angled, upper straight
Alternative article	32153, 3441, 005, TWG0001659, 00000100826
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 17 votes

Collections

All spare parts RedmondSpare parts for meat grinders RedmondAll meat grinder gears Redmond

REDMOND meat grinder gear for RMG-1203

This is a replacement gear for a REDMOND meat grinder. It works as part of the gear train, engaging with another gear to transfer rotation and torque between shafts. The part is made of white plastic and is intended for the RMG-1203 model.

Suitable for

Suitable for repairing the Redmond RMG-1203 meat grinder reducer when replacing a gear with matching dimensions and tooth profile.

Compatible brands and models

Equipment brand: Redmond
Equipment model: RMG-1203

Key specifications

Part numbers: RD005, 16559.
Alternative part numbers: 32153, 3441, 005, TWG0001659, 00000100826.
Outer diameter is 81 mm; height is 56 mm.
Teeth: 38 lower helical and 12 upper straight.
Material is plastic; color is white.

Before ordering

Before ordering, check the 81 mm outer diameter, 56 mm height, 38/12 teeth and tooth direction: lower helical, upper straight.
