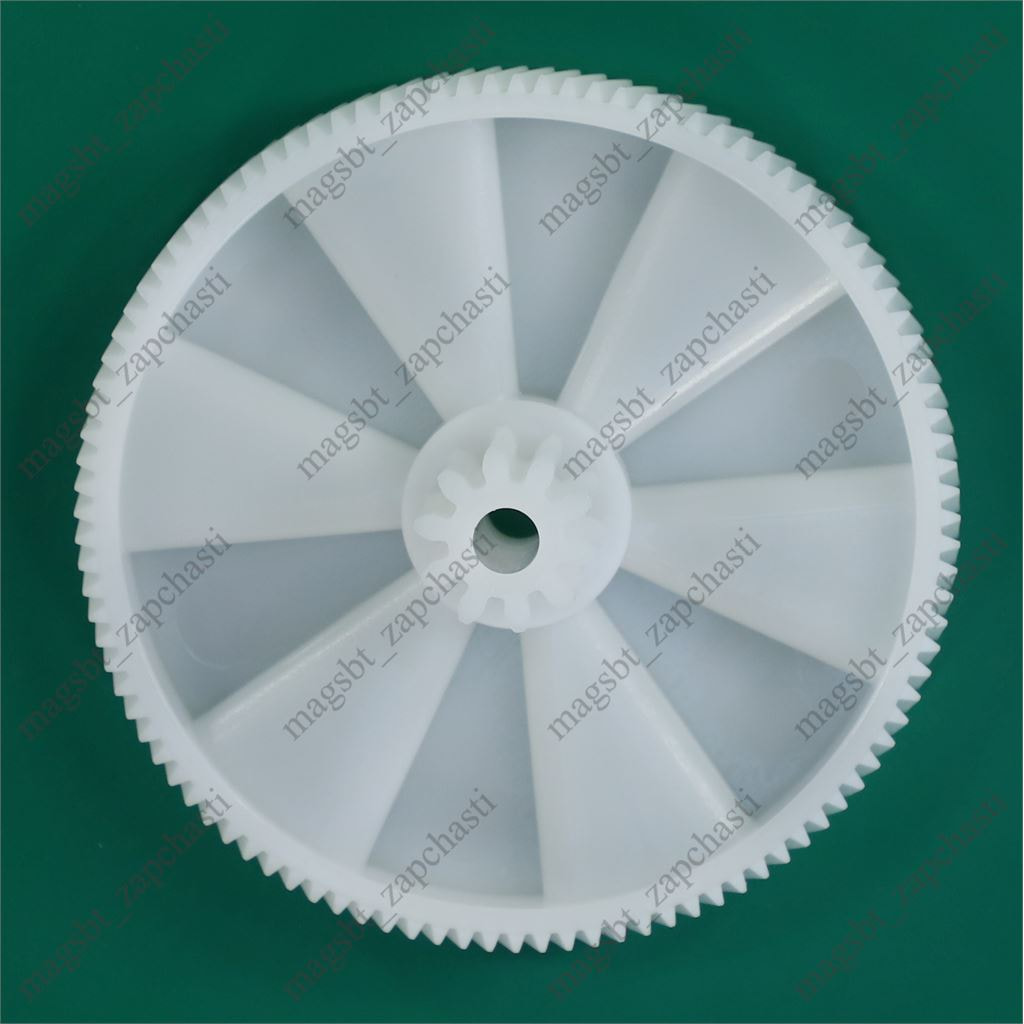

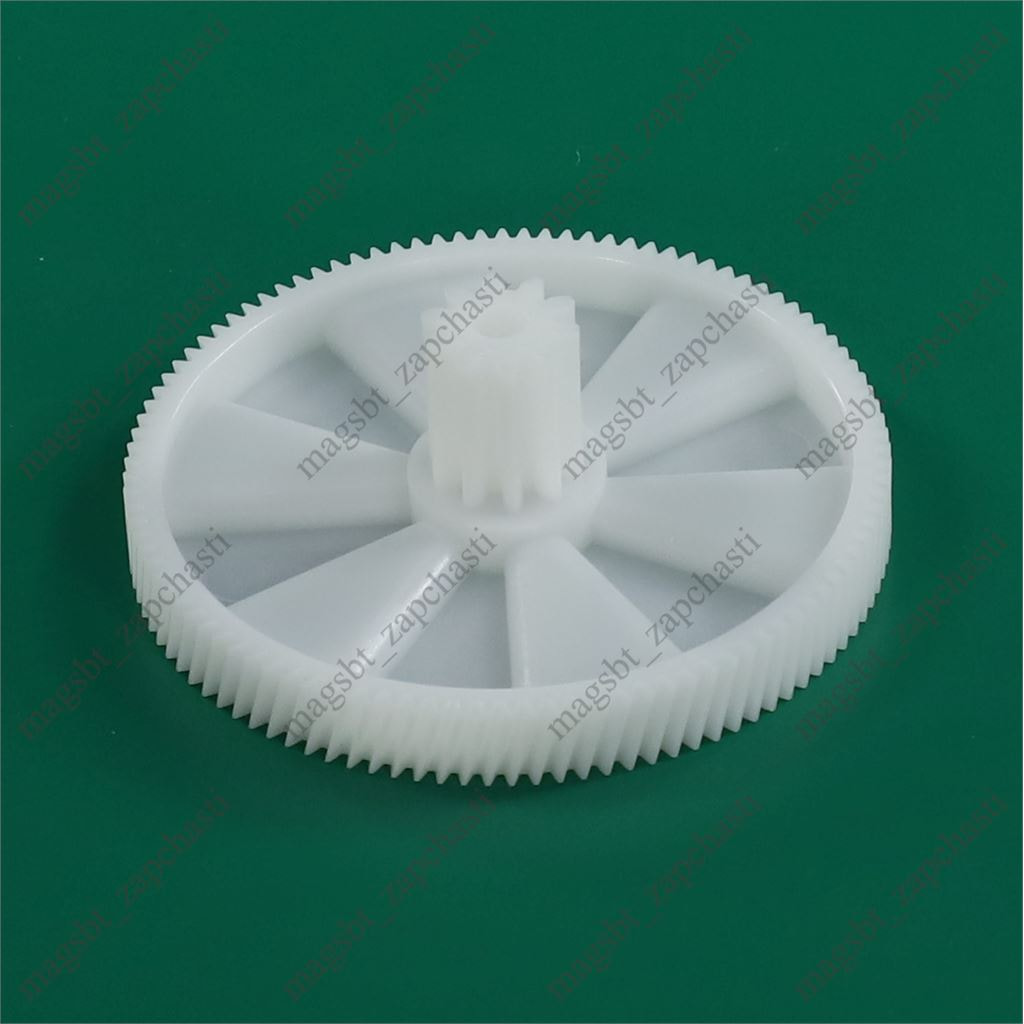

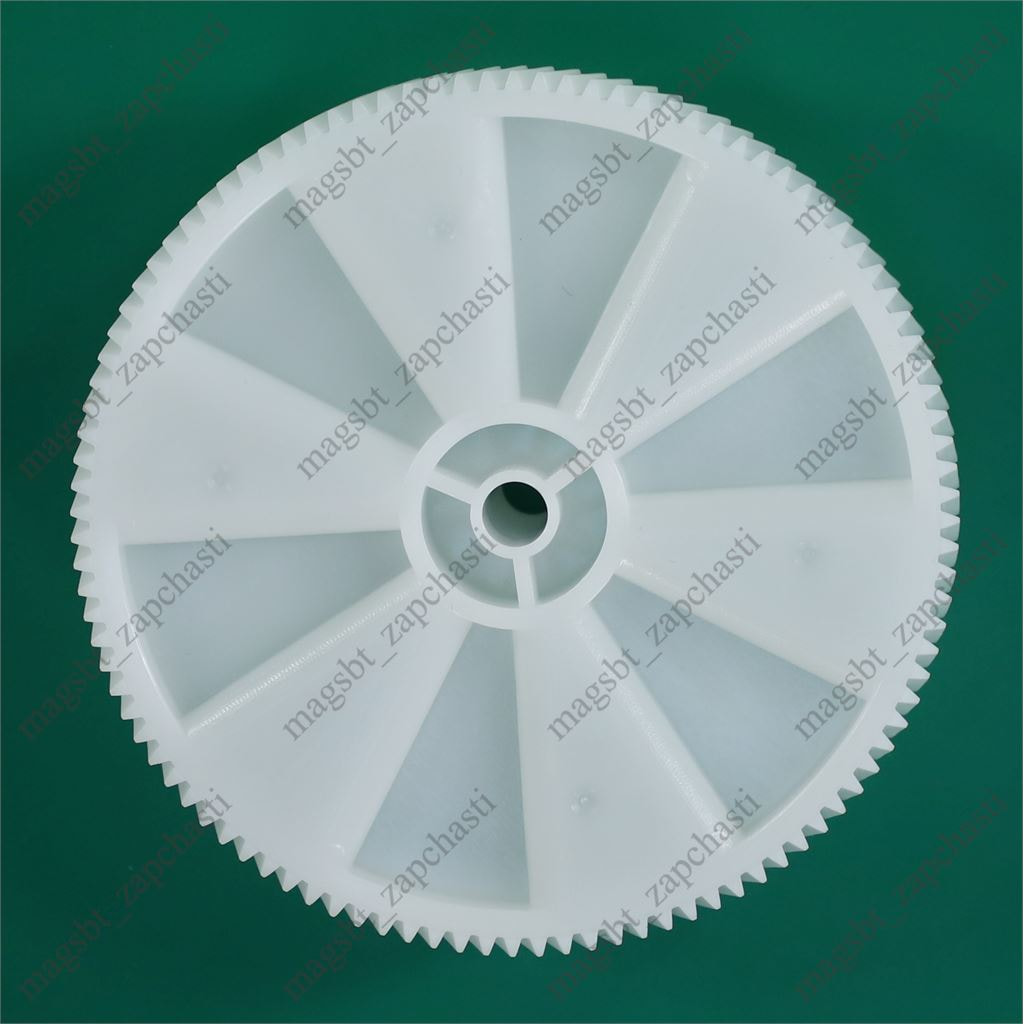

*Meat grinder gear KENWOOD Ш97/20mm h34mm z104/10 cos/straight large KW001 MG350

*Meat grinder gear KENWOOD Ш97/20mm h34mm z104/10 cos/straight large KW001 MG350 photo 2 -

*Meat grinder gear KENWOOD Ш97/20mm h34mm z104/10 cos/straight large KW001 MG350 photo 3 -

Превью запчасти *Meat grinder gear KENWOOD Ш97/20mm h34mm z104/10 cos/straight large KW001 MG350 photo 3 -

Code: 13366 | Art: MGR002UN (080С)

under the order

Characteristics

Manufacturer

—

Kenwood

Country of origin

—

China

Color

—

White

Material

—

Plastic

Shaft height

—

All characteristics

They buy with this product

This plastic gear is used in the gear assembly of a meat grinder to transmit rotation. Color: white; outer diameter 97 mm, inner diameter 20 mm, height 34 mm, shaft height 12 mm. The lower teeth are helical and the upper teeth are straight; tooth count is 104 at the bottom and 10 at the top. Country of manufacture: China. Article: MGR002UN (080С), 13366. Alternative articles: КХ-0006893, TTK008, ШЕСТ089, KW650740, MGR002UN, MM0309W, 9999990038, MGR000KW. Suitable for model KW001 MG350. Spare part compatibility depends on the appliance model and year of manufacture — if in doubt, check with a manager.

Product characteristics

Manufacturer	Kenwood
Country of origin	China
Color	White
Material	Plastic
Shaft height	12
Compatible models	KW001 MG350
Height, mm	34
Number of upper teeth	10
Number of lower teeth	104
Outer diameter, mm	97
Inner diameter, mm	20
Inner diameter, mm	20
Tooth direction	Lower angled, upper straight
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 11 votes

Collections

All spare parts KenwoodSpare parts for meat grinders KenwoodAll meat grinder gears Kenwood

Kenwood KW001 MG350 Meat Grinder Gear

This large gear is used in the drive gear train of a Kenwood meat grinder. It transfers rotation between geared wheels and helps convert torque and shaft speed. The part is made of white plastic.

Suitable for

Suitable for Kenwood meat grinders using the compatible KW001 MG350 model gear and matching mounting dimensions.

Compatible brands and models

Equipment brand: Kenwood
Equipment model: KW001 MG350

Key specifications

Material: plastic; color: white.
Dimensions: outer diameter 97 mm, inner diameter 20 mm, height 34 mm.
Shaft height: 12 mm.
Teeth: 104 lower helical teeth and 10 upper straight teeth.
Item codes: MGR002UN (080С), 13366; analogs: КХ-0006893, TTK008, ШЕСТ089, KW650740, MM0309W, 9999990038, MGR000KW.

Before ordering

Before ordering, check the 97/20 mm diameters, 34 mm height, 12 mm shaft height, 104/10 tooth count, and tooth direction.

Applicability of the product to models of household appliances

Enter the first characters of the model in the search line below and the list will be filtered.
You can click on the model name to search for all spare parts for this model of equipment.

MG300, MG400, MG450, MG470, MG500 PG500, PG520, PG510, PG511, KMG1200, MG511, MG517, MG476, MG517, MG510, MGX400, MG515, MG516, MG480, MG510, MG474, MG475,MG476, MG477, MG480, MG517, MG520, pro1500, pro1600
