Spare parts catalog

*Meat grinder gear ELENBERG D45/28 mm h30 mm z54/12 helical/straight

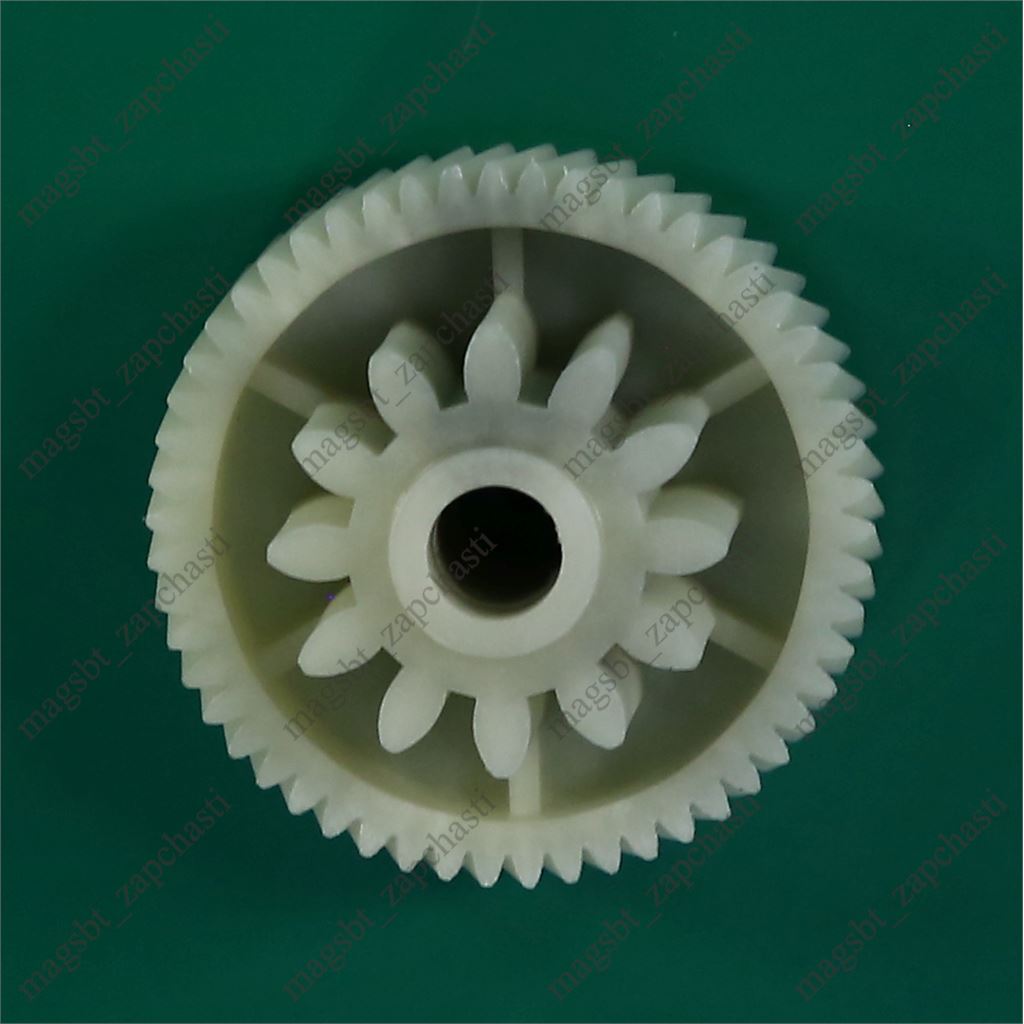

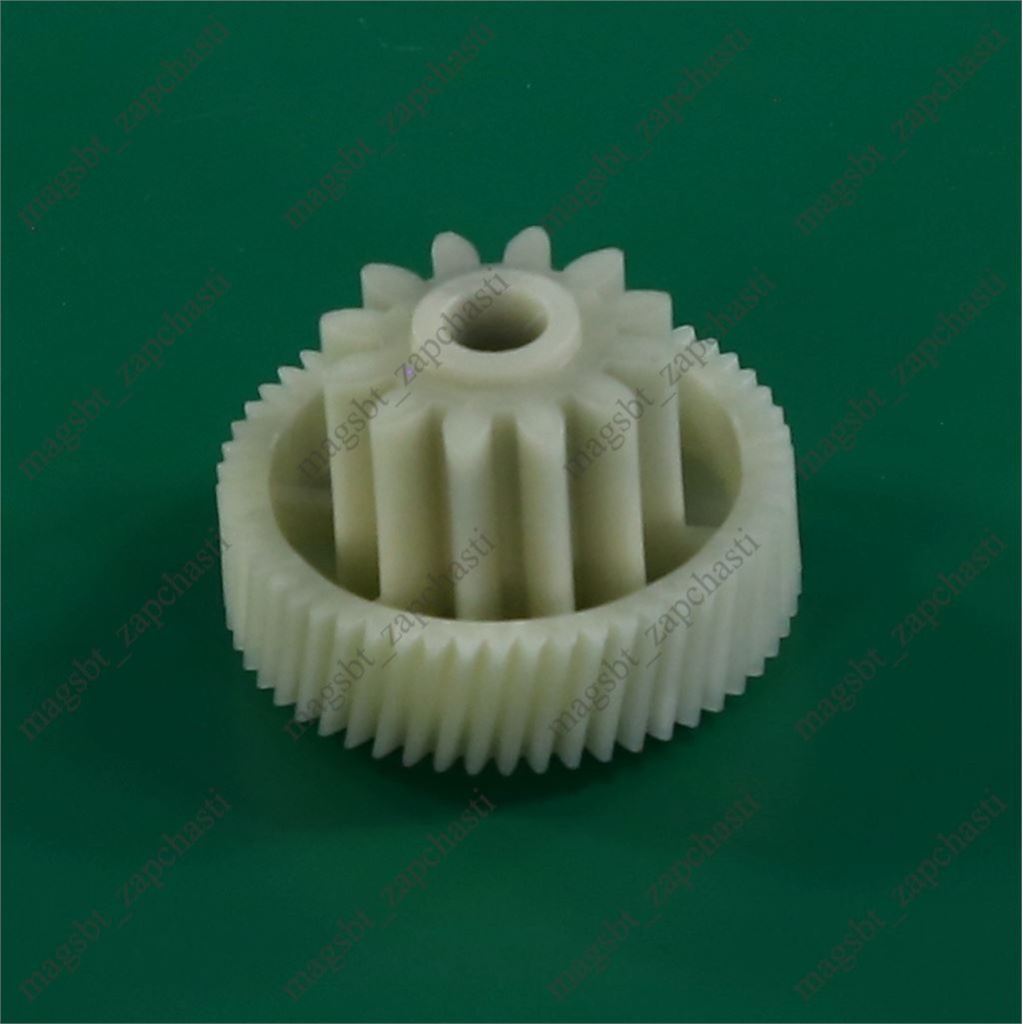

*Meat grinder gear ELENBERG D45/28 mm h30 mm z54/12 helical/straight photo 2 -

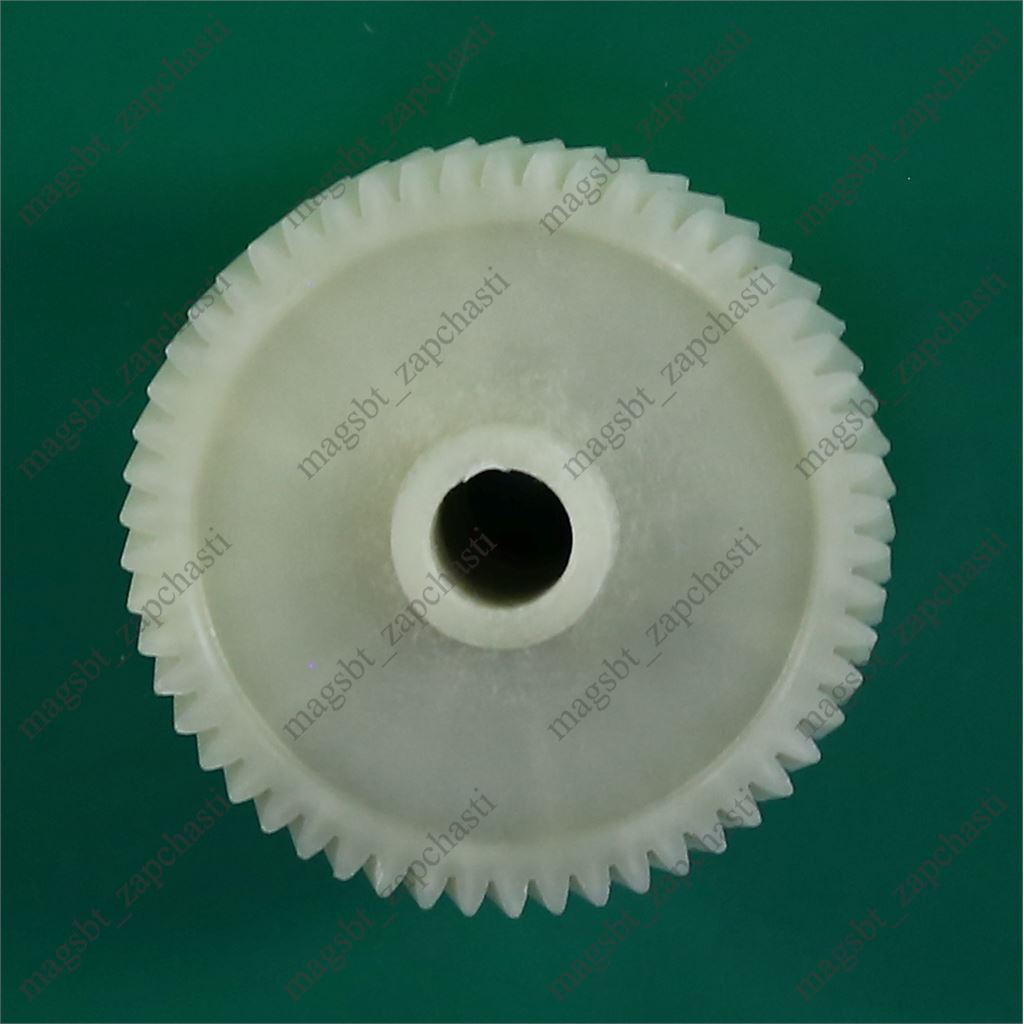

*Meat grinder gear ELENBERG D45/28 mm h30 mm z54/12 helical/straight photo 3 -

Превью запчасти *Meat grinder gear ELENBERG D45/28 mm h30 mm z54/12 helical/straight photo 3 -

Code: 12830 | Art: 41.041-VIT (065а)

under the order

Characteristics

Manufacturer

—

Elenberg

Country of origin

—

China

Color

—

White

Material

—

Plastic

Height, mm

—

All characteristics

They buy with this product

The grinder gear is used in the mechanism’s gear transmission and is a replaceable part of the drive unit. The part is made of white plastic: outer diameter 45 mm, inner diameter 28 mm, height 30 mm. The design has lower helical teeth and upper straight teeth; the tooth count is 54 on the lower section and 12 on the upper section. Article: 41.041-VIT (065а), 12830; alternative articles: 14177, УТ000002395, MRG410UN, ШЕСТ077. Spare part compatibility depends on the appliance model and year of manufacture — if in doubt, check with a manager.

Product characteristics

Manufacturer	Elenberg
Country of origin	China
Color	White
Material	Plastic
Height, mm	30
Number of upper teeth	12
Number of lower teeth	54
Outer diameter, mm	45
Inner diameter, mm	28
Inner diameter, mm	28
Tooth direction	Lower angled, upper straight
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 24 vote

Collections

All spare parts ElenbergSpare parts for meat grinders ElenbergAll meat grinder gears Elenberg

ELENBERG meat grinder gear 45/28 mm

The ELENBERG D45/28 mm h30 mm meat grinder gear is a plastic toothed wheel for the transmission assembly. It transfers torque from the electric motor through the gearbox to the auger and helps keep the working mechanism rotating.

Suitable for

For repairing the transmission assembly in Elenberg (Эленберг) meat grinders when the mounting dimensions and tooth profile match.

Compatible brands and models

Equipment brand: Elenberg (Эленберг)

Key specifications

Manufacturer: Elenberg; country of manufacturer: China.
Material: plastic; color: white.
Dimensions: outer diameter 45 mm, inner diameter 28 mm, height 30 mm.
Teeth: lower 54, upper 12; lower oblique, upper straight.
Part number: 41.041-VIT (065а), 12830; alternatives: 14177, УТ000002395, MRG410UN, ШЕСТ077.

Before ordering

Before ordering, check the 45/28 mm outer and inner diameters, 30 mm height, 54/12 teeth, and tooth direction: lower oblique, upper straight.

To place a wholesale order, you need to log in or register on the site, add the products you are interested in to the cart and send a request for prices.

Payment of an order in the online store is possible after agreeing with the manager. Make an order and he will contact you to coordinate payment methods.
