Product characteristics
Manufacturer | Braun |
Country of origin | China |
Color | black |
Material | Plastic |
Compatible models | 70011026 |
Height, mm | 47 |
Number of upper teeth | 10 |
Number of lower teeth | 27 |
Outer diameter, mm | 49 |
Inner diameter, mm | 31 |
Inner diameter, mm | 31 |
Tooth direction | Lower angled, upper straight |
Alternative article | 021711, TWG000297, 1065-01, 10462 |
Источник | интернет-магазин запчастей https://magsbt.com/ |
Collections

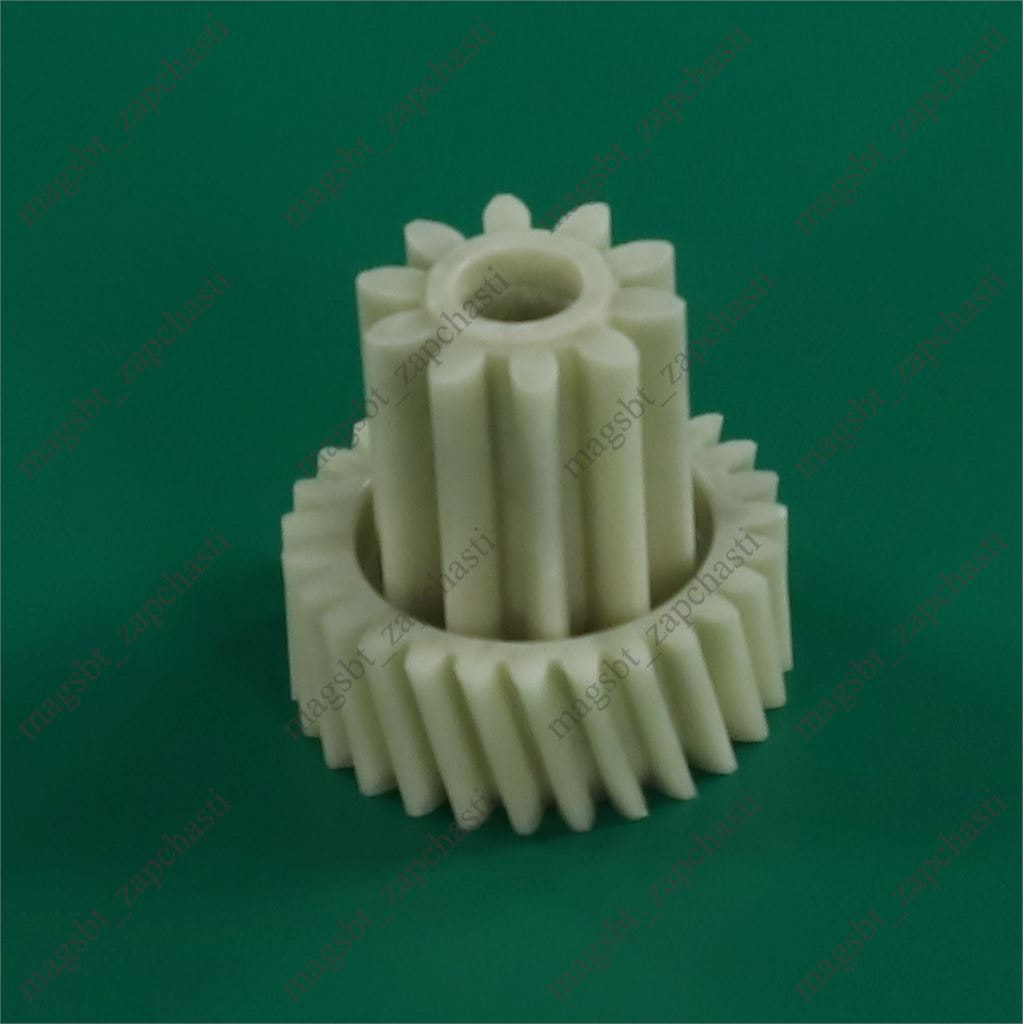

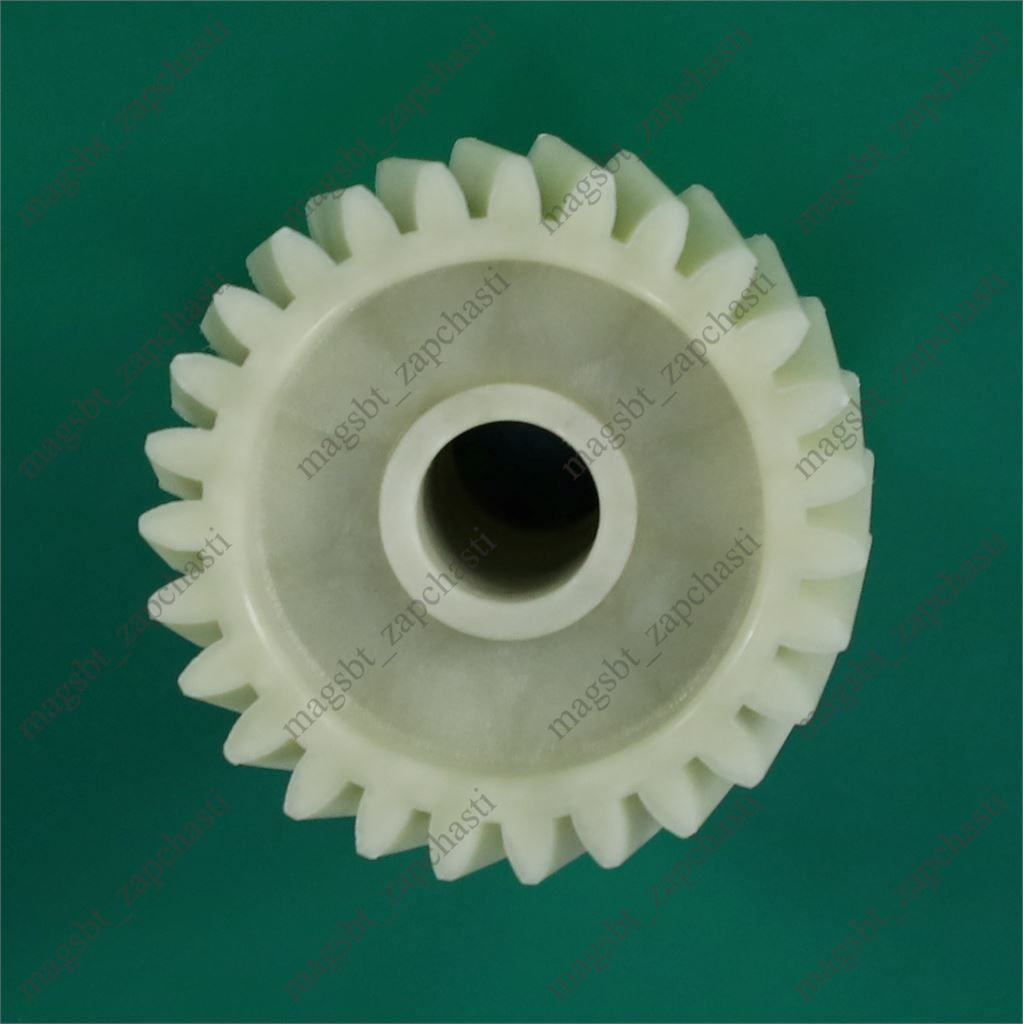

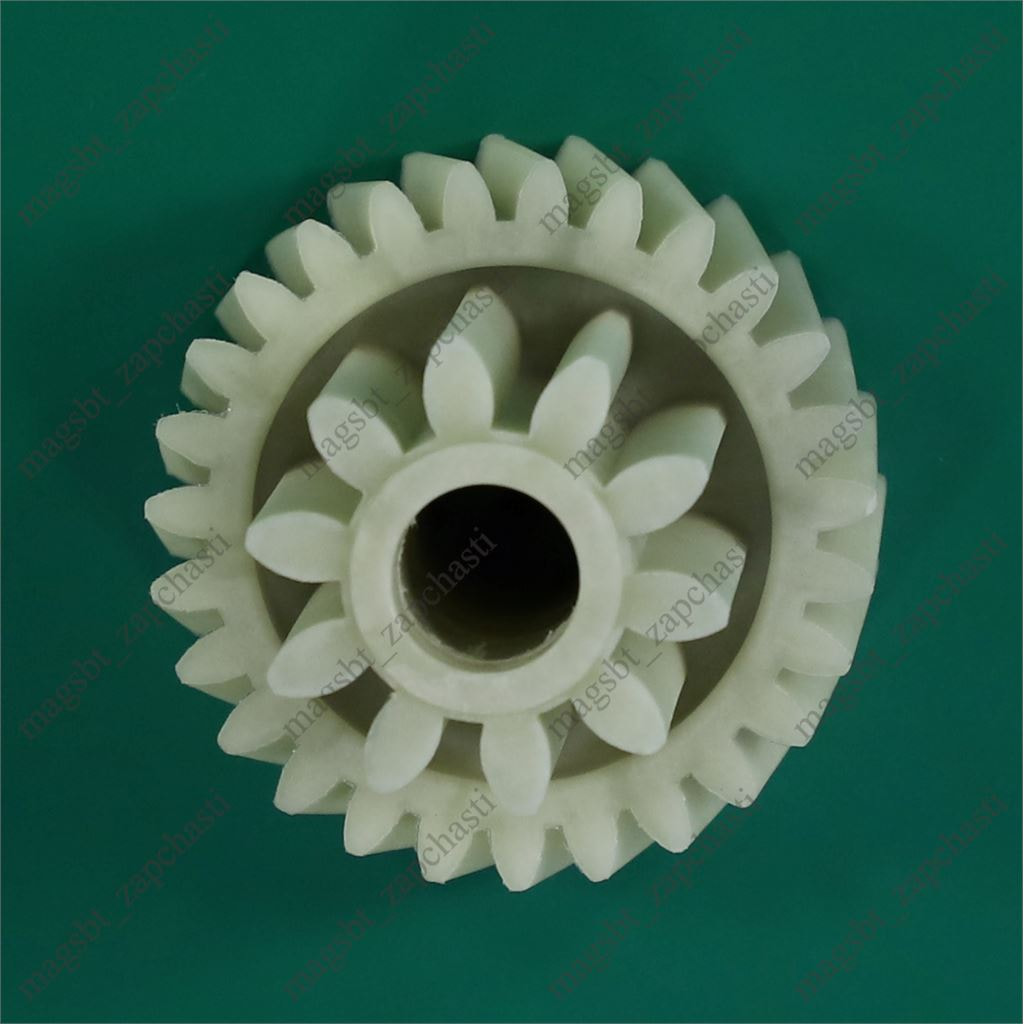

Braun meat grinder gear 49/31 mm, h47 mm, z27/10
Plastic gear for a Braun meat grinder with a 49 mm outer diameter and a 31 mm inner diameter. The part works in the toothed transmission and helps transfer torque between shafts. Its design combines lower helical teeth with upper straight teeth.
Suitable for
Suitable for repairing the transmission unit of Braun meat grinders compatible with model 70011026. Used to replace a small gear with matching dimensions and tooth count.
Compatible brands and models
- Equipment brand: Braun
- Equipment model: 70011026
Key specifications
- Part number: 00000012822/BR005 (014а), 12822.
- Alternative part numbers: 021711, TWG000297, 1065-01, 10462.
- Dimensions: outer diameter 49 mm, inner diameter 31 mm, height 47 mm.
- Tooth count: 27 lower teeth and 10 upper teeth.
- Material is plastic, color is black.
Before ordering
Before ordering, check the 49/31 mm diameters, 47 mm height, z27/10 tooth layout, and direction: lower helical, upper straight.
