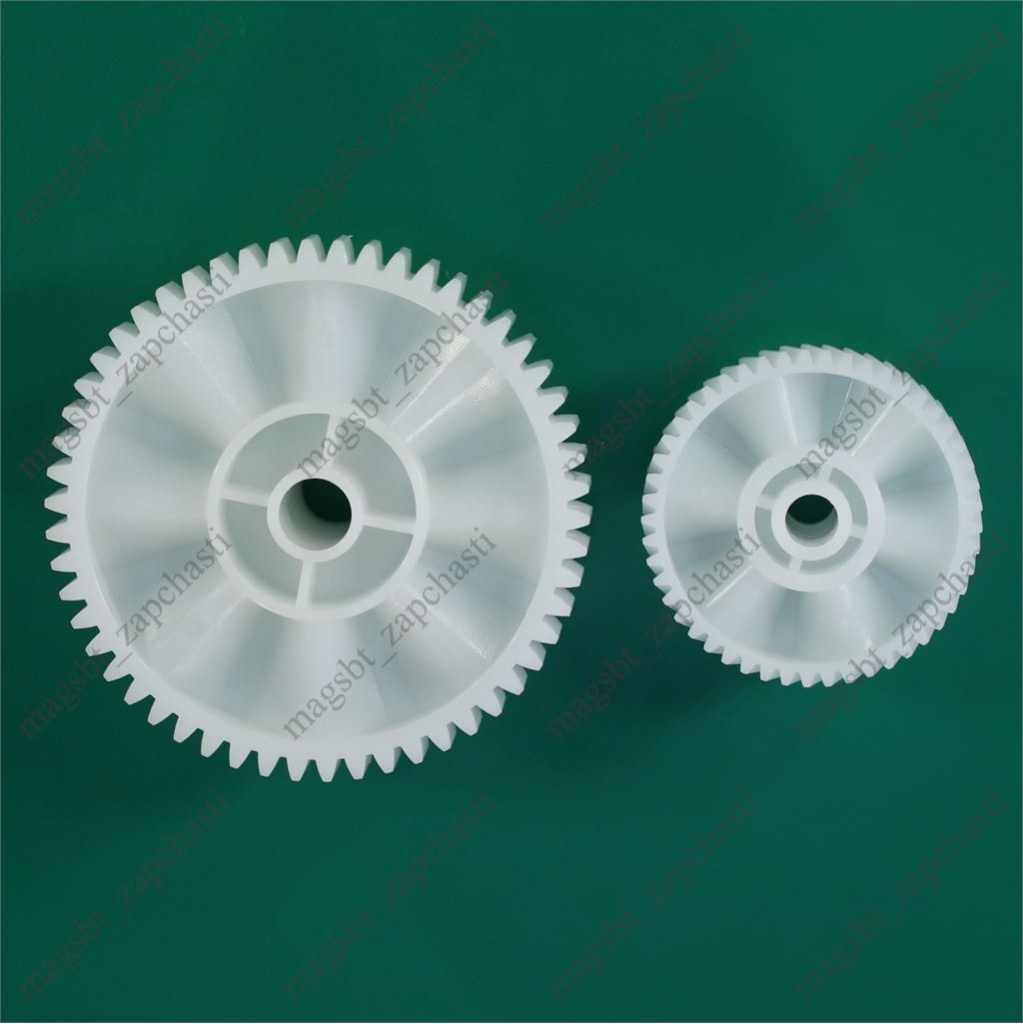

*Meat grinder gear BINATONE BIN006 set 2 pcs Z54/14 H40mm z49/12 h33mm

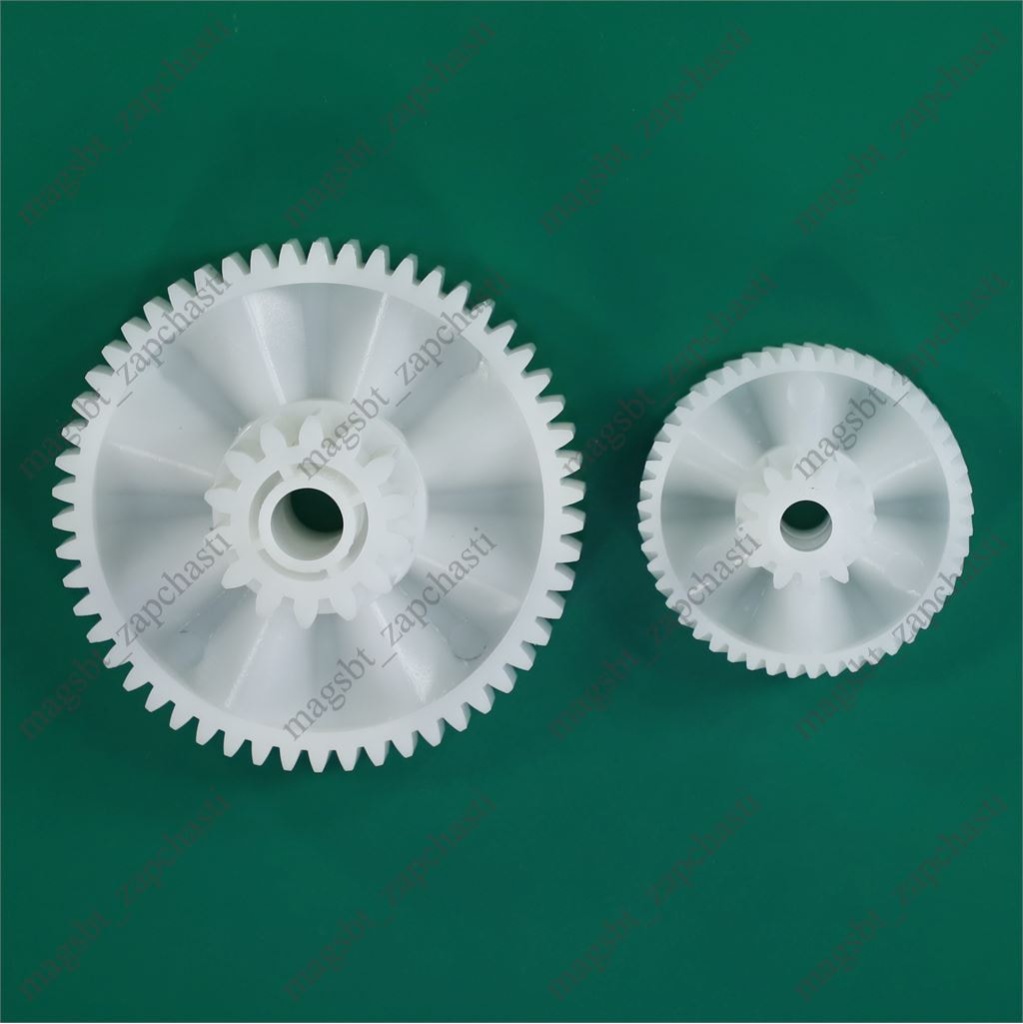

*Meat grinder gear BINATONE BIN006 set 2 pcs Z54/14 H40mm z49/12 h33mm photo 2 -

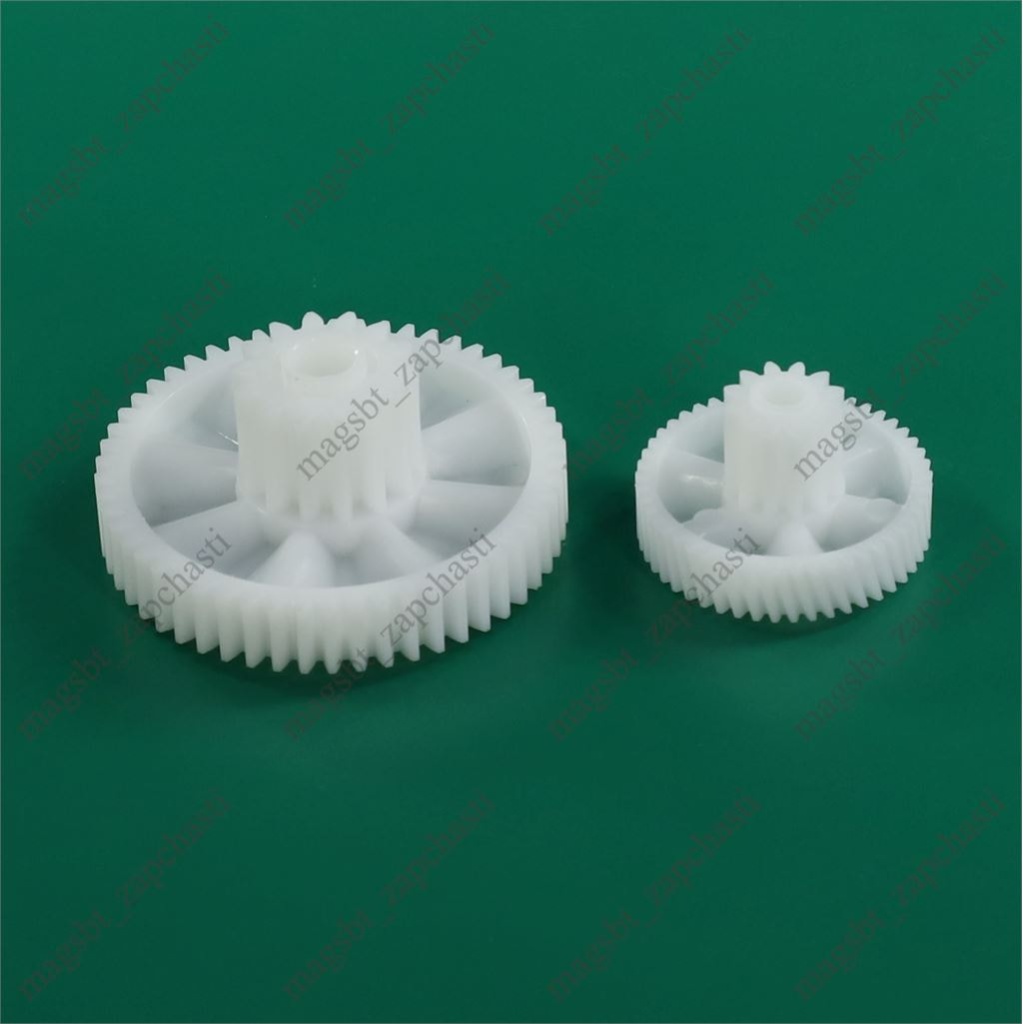

*Meat grinder gear BINATONE BIN006 set 2 pcs Z54/14 H40mm z49/12 h33mm photo 3 -

Превью запчасти *Meat grinder gear BINATONE BIN006 set 2 pcs Z54/14 H40mm z49/12 h33mm photo 3 -

Code: 16761 | Art: BIN006

under the order

Characteristics

Manufacturer

—

Binatone

Country of origin

—

China

Color

—

White

Material

—

Plastic

Height, mm

—

All characteristics

They buy with this product

This plastic gear set is used in the gear transmission unit of a meat grinder. The kit includes 2 white parts: D83.5/32 mm h40 mm z54/14 and D52/21 mm z49/12 h33 mm. Tooth direction: large gear straight; smaller gear lower teeth oblique, upper teeth straight. Part numbers: BIN006, 16761; alternative part numbers: TWG000692, 00000010314, 1711. Spare part compatibility depends on the appliance model and year of manufacture — if in doubt, check with a manager.

Product characteristics

Manufacturer	Binatone
Country of origin	China
Color	White
Material	Plastic
Height, mm	40
Number of upper teeth	14
Number of lower teeth	54
Outer diameter, mm	83.5
Inner diameter, mm	32
Inner diameter, mm	32
Tooth direction	Large–straight, small–bottom angled, top straight
Alternative article	TWG000692, 00000010314, 1711
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 16 votes

Collections

All spare parts Binatone

BINATONE Meat Grinder Gear Set

A set of two gears for the gear transmission of a BINATONE meat grinder. The white plastic parts transfer rotation between shafts and help convert torque and rotational speed. The set includes sizes D83.5/32 mm h40 mm z54/14 and D52/21 mm z49/12 h33 mm.

Suitable for

For servicing the drive gear assembly of a BINATONE meat grinder when worn gears with matching dimensions and tooth counts need replacement.

Compatible brands and models

Equipment brand: BINATONE

Key specifications

Set: 2 white plastic gears.
Main gear: outer/inner diameter 83.5/32 mm, height 40 mm.
Main gear tooth count: 54 lower and 14 upper.
Second gear: D52/21 mm, z49/12, h33 mm.
Part numbers: BIN006, 16761; alternatives TWG000692, 00000010314, 1711.

Before ordering

Before ordering, compare gear diameters, height, tooth counts and tooth direction with the removed parts.
