Code: 21599 | Art: 060-117166R
under the order
Characteristics
Manufacturer
—
RIDAN
Country of origin
—
China
They buy with this product

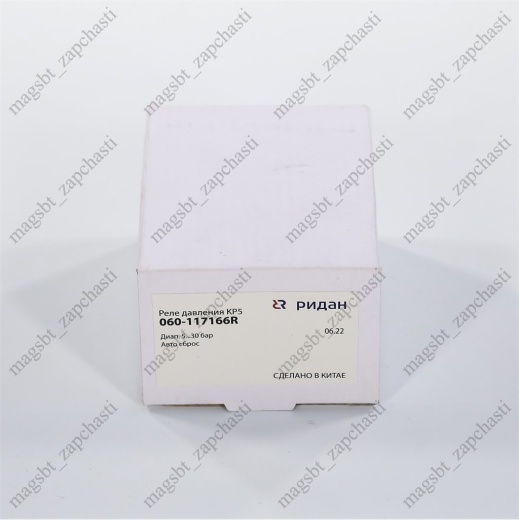

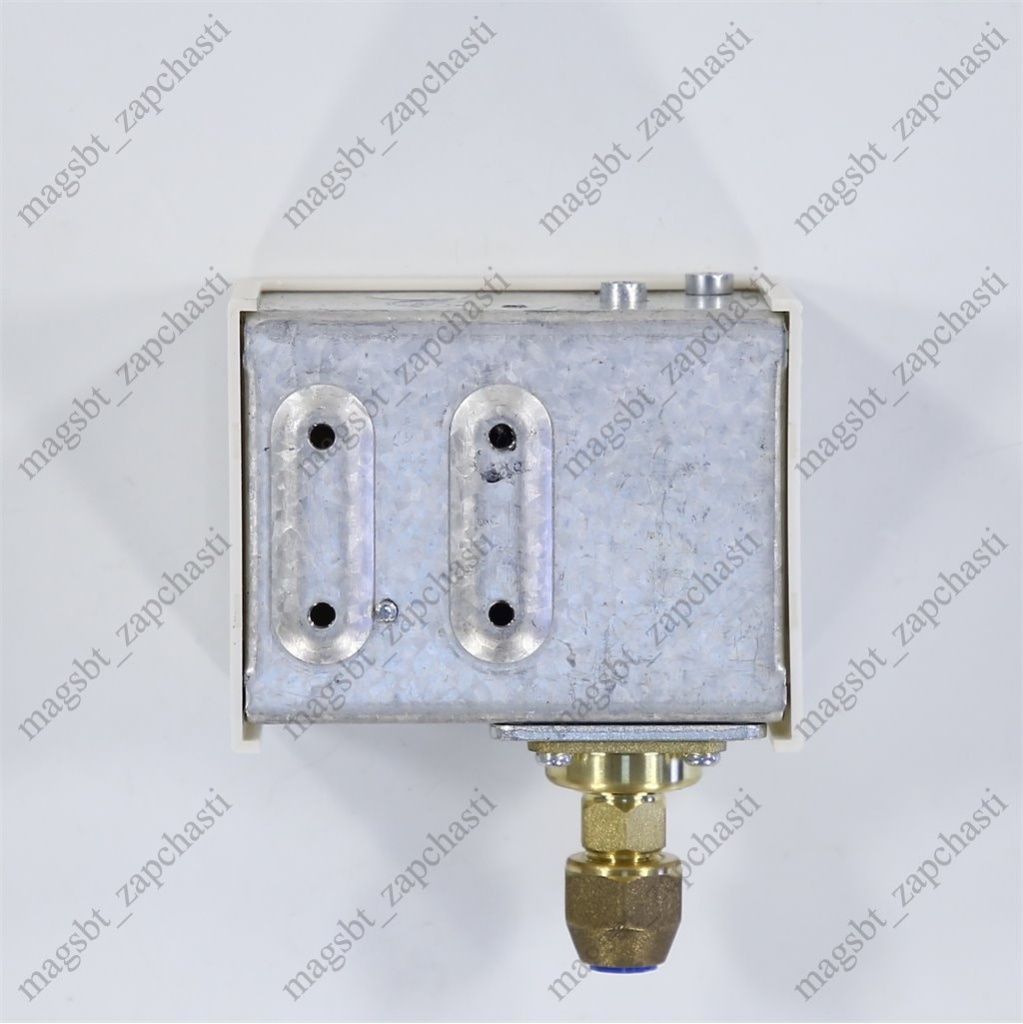

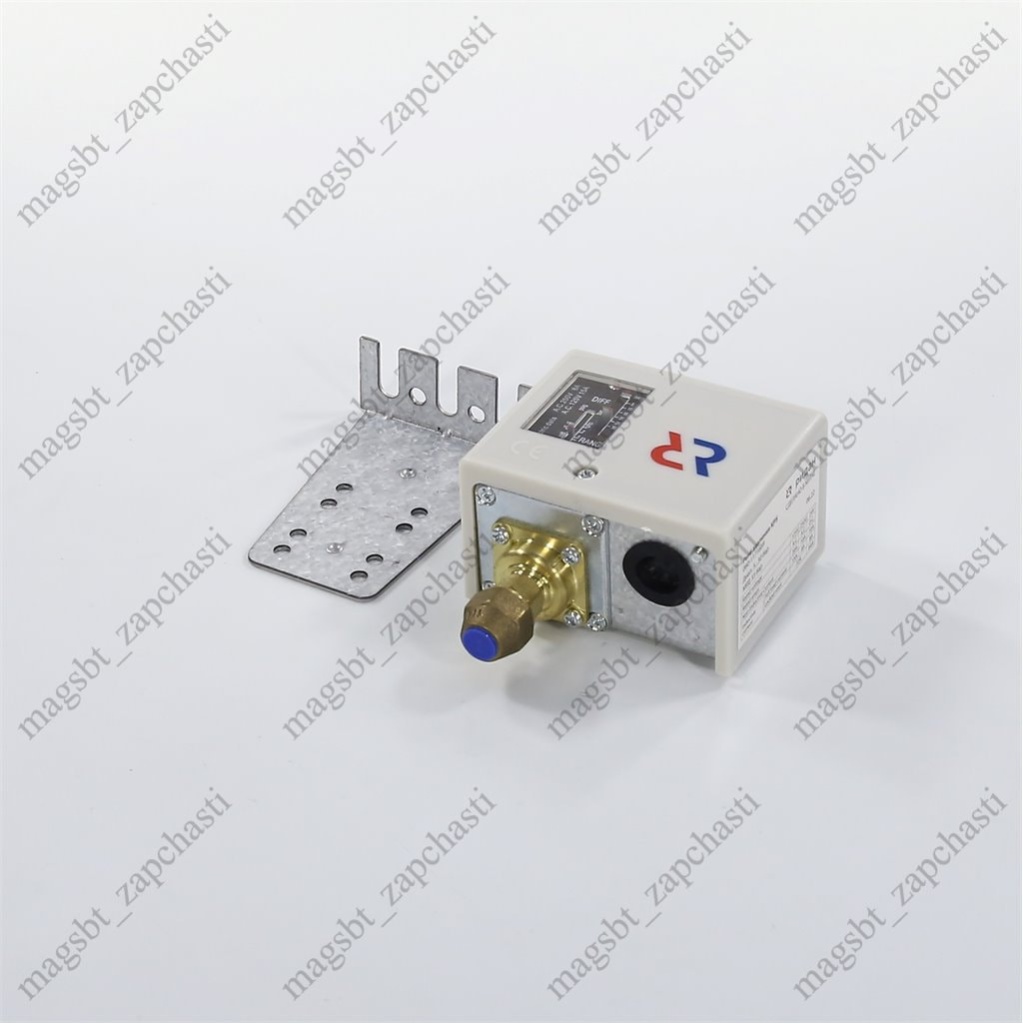

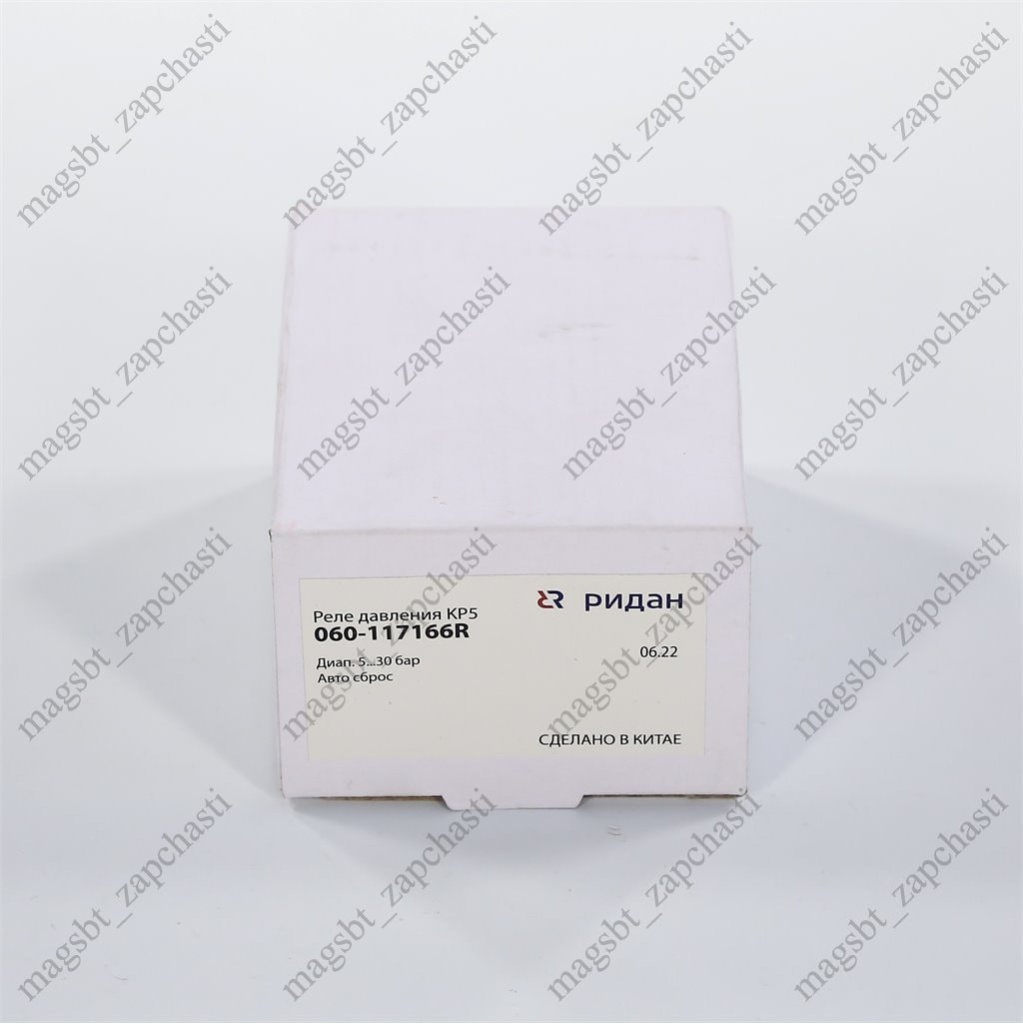

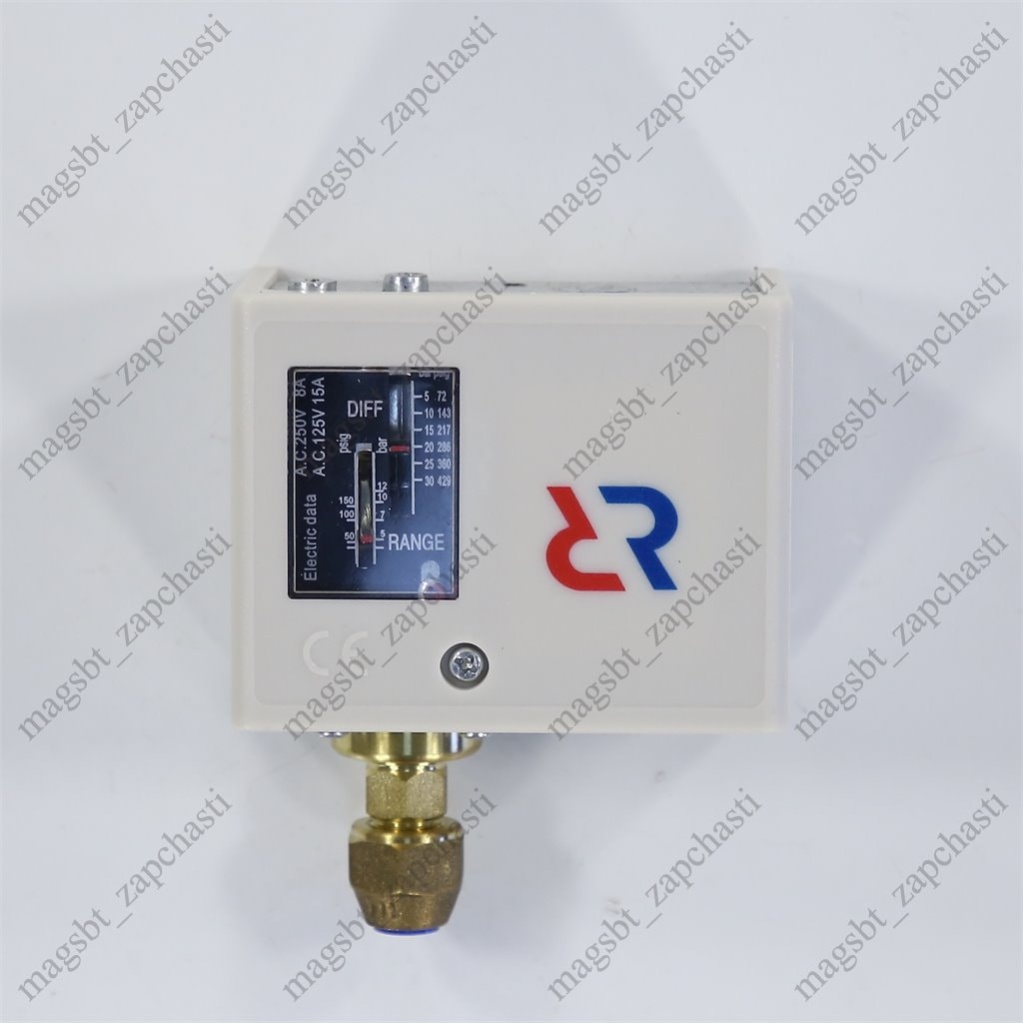

Pressure switch RIDAN KR 5 automatic return, designed for use in refrigeration equipment to protect the system from too low suction pressure or too high discharge pressure. Pressure switches KP are also used to start and stop refrigeration compressors and air-cooled condenser fans. The reinforced contact group makes it possible to control the operation of electric motors without the use of contactors.
Characteristic:
Max. test pressure: 33 bar.

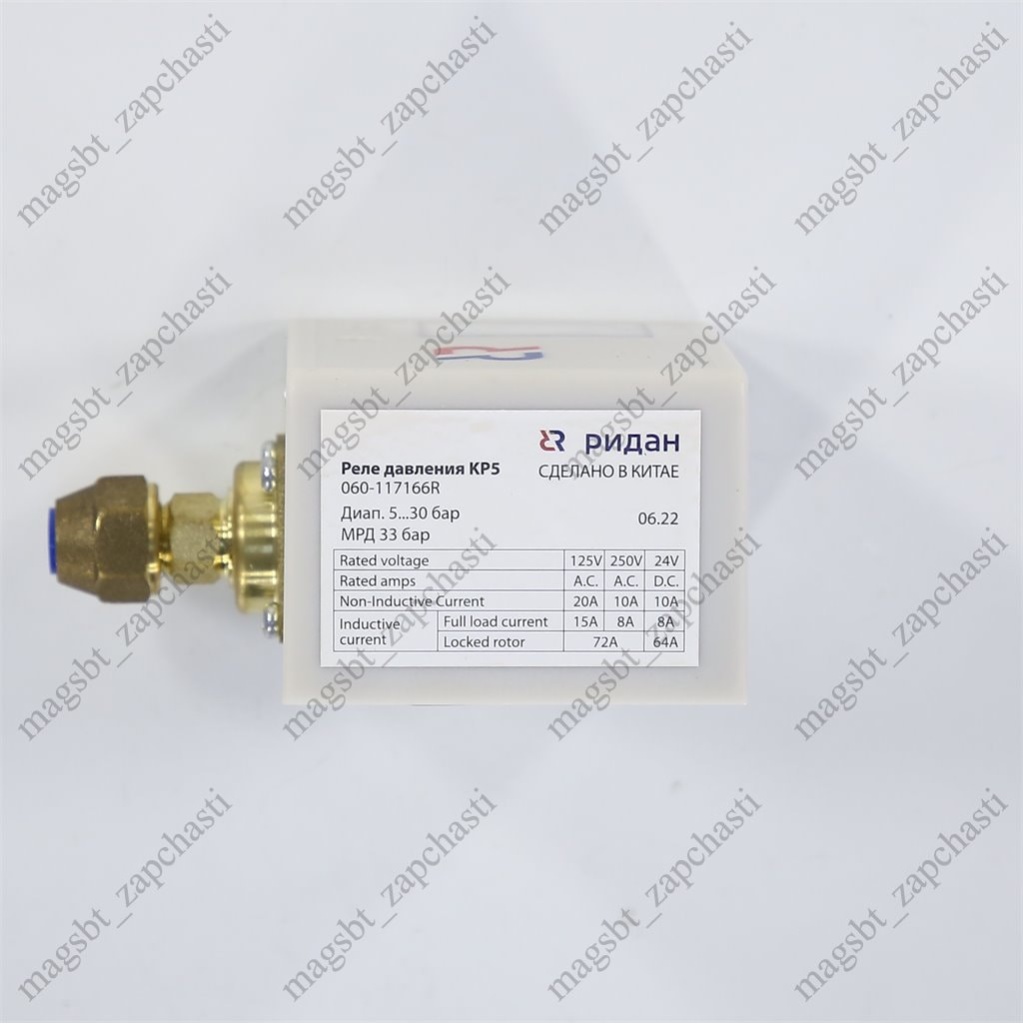

Contact load, 125 V (AC) - 20 A, 250 V (AC) - 10 A, 24 V (DC) - 10 A.
Max. starting current (LR): 72 A, 250 V.
Pressure: High pressure.
Outdoor temperature range: -40 - 65 °C.
Reset function: Automatic.
Maximum operating pressure: 33 Bar.
Pressure connection: 1/4 inch flare.
Differential: 3.0 - 10.0 Bar.
Electrical connection size: 6-14mm.
Characteristic:
Max. test pressure: 33 bar.
Contact load, 125 V (AC) - 20 A, 250 V (AC) - 10 A, 24 V (DC) - 10 A.
Max. starting current (LR): 72 A, 250 V.
Pressure: High pressure.
Outdoor temperature range: -40 - 65 °C.
Reset function: Automatic.
Maximum operating pressure: 33 Bar.
Pressure connection: 1/4 inch flare.
Differential: 3.0 - 10.0 Bar.
Electrical connection size: 6-14mm.
Product characteristics
Manufacturer | RIDAN |
Country of origin | China |
Источник | интернет-магазин запчастей https://magsbt.com/ |
