Characteristics
Manufacturer
—
Eliwell
Country of origin
—
Italy
Model
—
EW 961
Number of sensors
—
1 sensor
Number of relays
—
1 relay
All characteristics
They buy with this product
Similar products

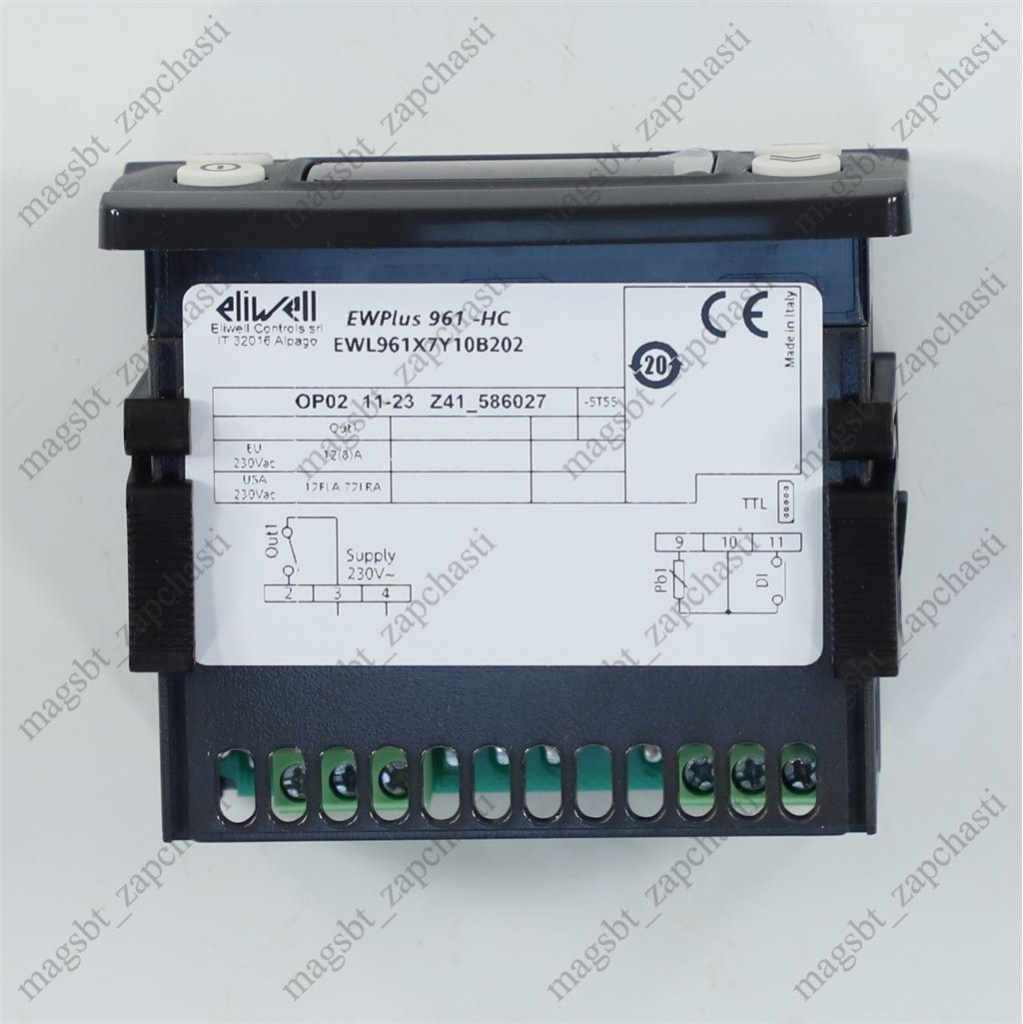

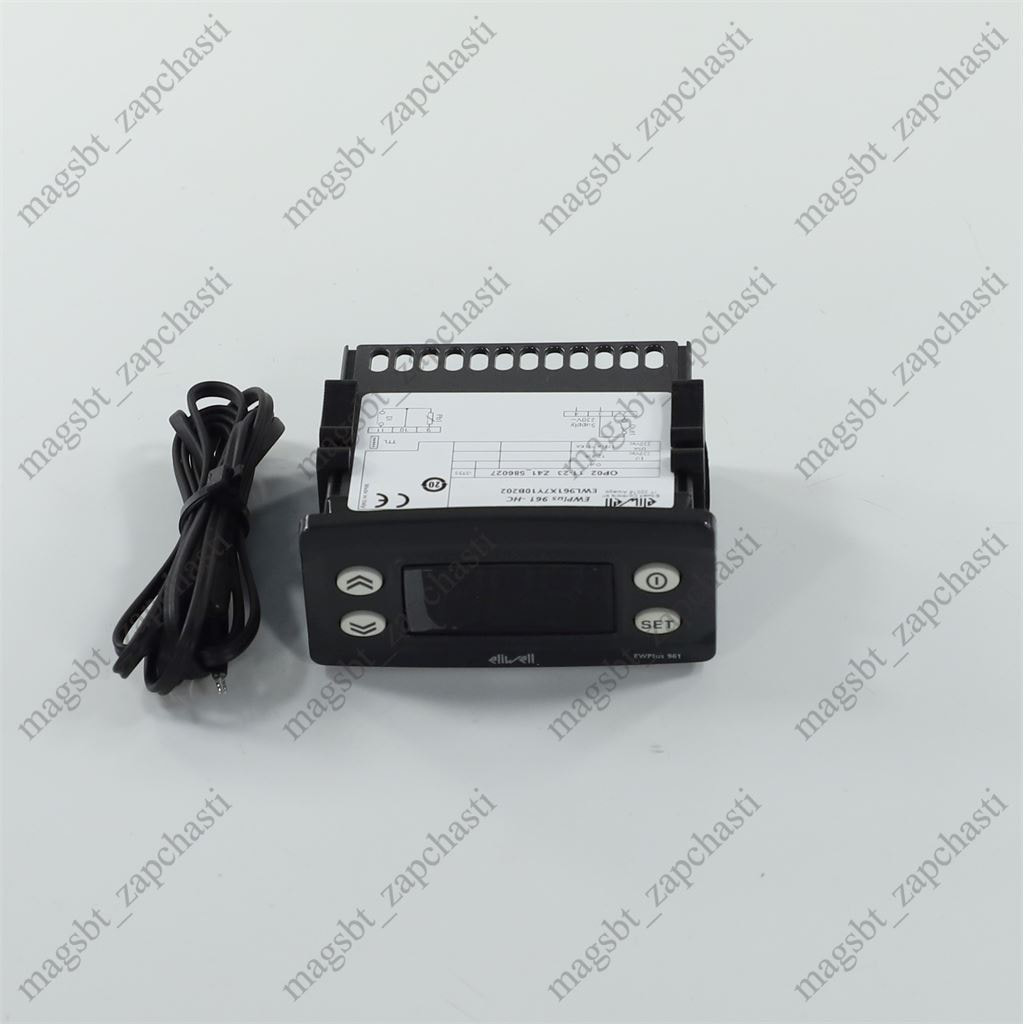

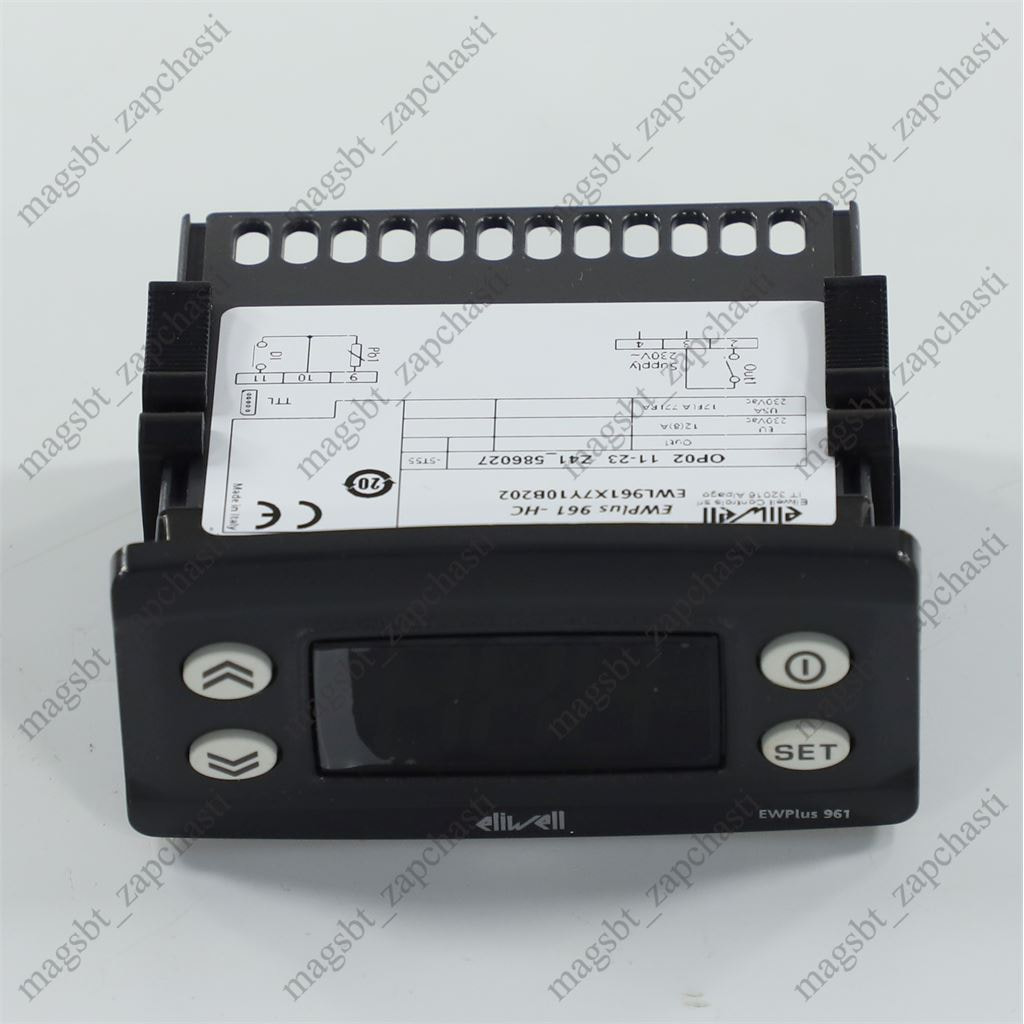

Eliwell EW 961 controllers are designed for medium temperature refrigeration units. They are equipped with an input for PTC temperature sensors (NTC can be selected by parameter) and an output relay for controlling the compressor. The duration of defrost cycles is determined by the time intervals at which the compressor stops. The value read by the sensor is displayed on a 2-digit display. All versions have a TTL port for a copy card. Front panel protection IP 65 Housing: PC+ABS UL94 V-0 polymer plastic, polycarbonate glass, thermoplastic buttons Dimensions front panel 72x34mm, depth 60mm Display data range –50…110 (NTC) or –50…140 (PTC) °С 3 1/2 digits + sign Analog input 1 NTC or PTC input (selectable by parameter) Serial port TTL port for connection to Copy Card Digital outputs 1 relay: SPDT type 8(3) A 250V AC current Measurement range - 50…140 °C Power 3 VA Supply voltage 12 V AC/DC current or 230V AC current ±10% 50/60Hz
Product characteristics
Manufacturer | Eliwell |
Country of origin | Italy |
Model | EW 961 |
Number of sensors | 1 sensor |
Number of relays | 1 relay |
Relay power, A | 12 |
Block application method | Compressor control and refrigerator defrost control |
Источник | интернет-магазин запчастей https://magsbt.com/ |
