Code: 14797 | Art: SPD011SA
under the order
Characteristics
Manufacturer
—
Samsung
Country of origin
—
Italy
Model
—
Cod 758 DC97-11292A
Shaft length
—
97
Bushing for seal
—
25 mm
All characteristics
They buy with this product

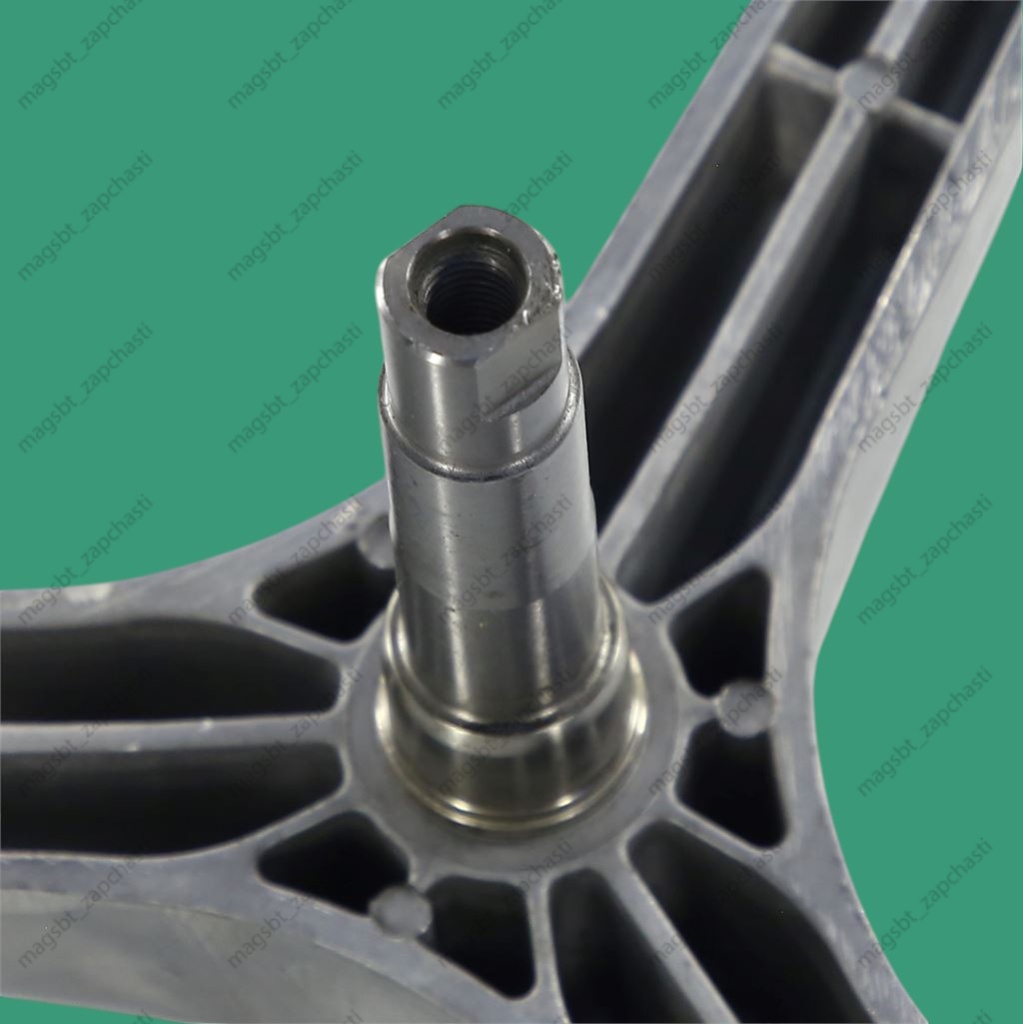

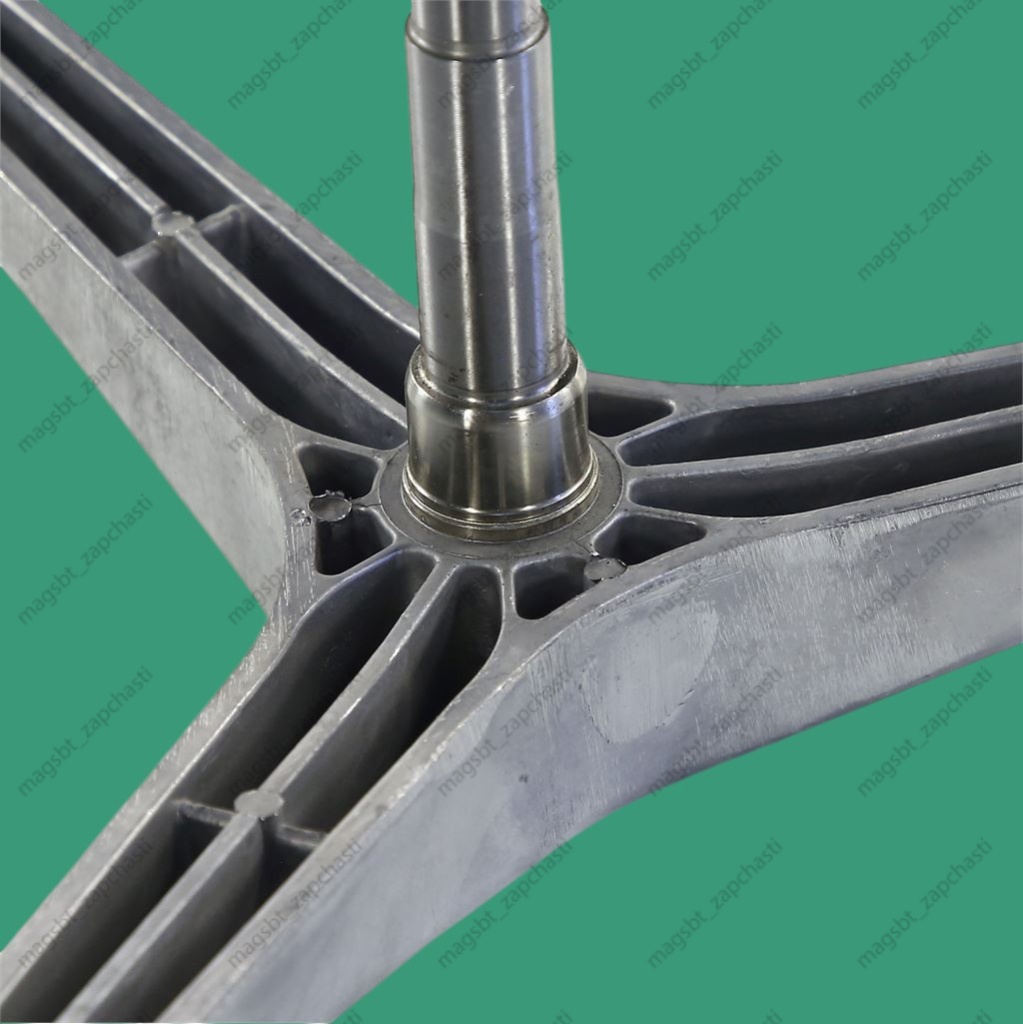

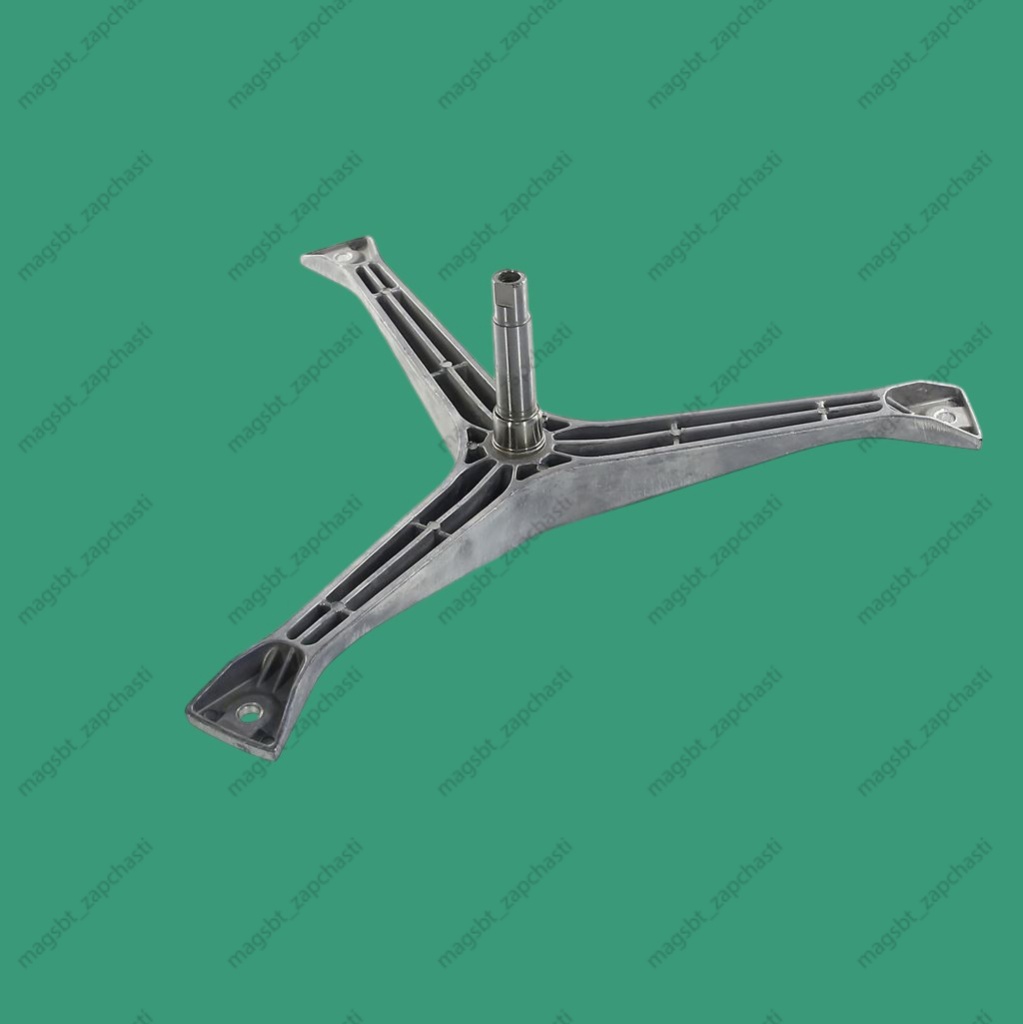

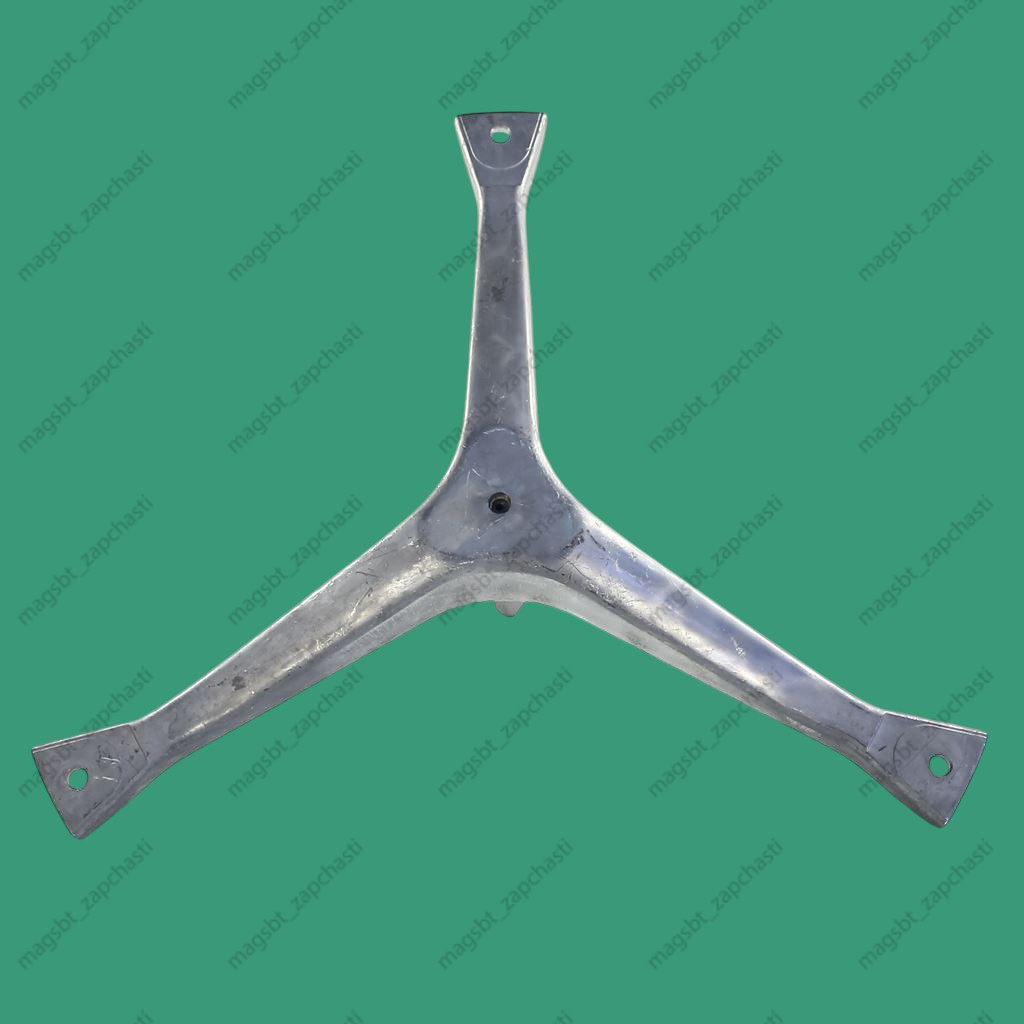

The SAMSUNG crosspiece (Cod. 758 DC97-11292A) is the shaft on which the washing machine drum rotates. This part is necessary for the operation of moving structural elements. The bearing assembly, which is attached to the crosspiece, is responsible for the rotation of the drum. It is this part that holds the drum itself, so damage to it can lead to serious damage to the bearings, heating element, drum and tank as a whole. Therefore, it is important to diagnose the malfunction in time and fix the problem in order to prevent further breakdowns. The crosspieces in washing machines of different brands are similar to each other, but still have certain differences. Therefore, if it is necessary to replace the crosspiece, you need to select a suitable element, taking into account both the manufacturer and the model of the automatic machine.
Product characteristics
Manufacturer | Samsung |
Country of origin | Italy |
Model | Cod 758 DC97-11292A |
Shaft length | 97 |
Bushing for seal | 25 mm |
Seal size | 25x50,55x10/12 |
Bearing | 6203, 6204 |
Источник | интернет-магазин запчастей https://magsbt.com/ |
Collections
Applicability of the product to models of household appliances
Enter the first characters of the model in the search line below and the list will be filtered.
You can click on the model name to search for all spare parts for this model of equipment.
R1031GWS/YLW R1031GWS1/YLR R1031GWS1/YLW R1031GWS1U/YLW R1033GWC1/YLP R1033GWC1/YLW R1033GWC1U/YLW R1043GW/YLP R1043GW/YLW R1043GWU/YLW R1045AGW/YLP R1045AGW/YLR R1045AGW/YLW R1052GWS/YLP R1052GWS/YLR R1052GWS/YLW R813JGW/YLR R813JGW/YLW R815JGW/YLW R831GWS/YLW R831GWS1/YLW R831GWS1U/YLW R833GW/YLP R833GW/YLW R833GW1/YLP R833GW1/YLW R833GW1U/YLW R843GW/YLP R843GW/YLW R843GWU/YLW R852GWS/YLP R852GWS/YLR R852GWS/YLW WF-R1054/YLP WF-R1054/YLR WF-R1054/YLW WF-R1056/YLP WF-R1056/YLW WF-R105AV/YLP WF-R105AV/YLW WF-R105NV/YLR WF-R105NV/YLW WF-R1061/YLP WF-R1061/YLR WF-R1061/YLW WF-R1062/YLP WF-R1062/YLR WF-R1062/YLW WF-R854/YLP WF-R854/YLR WF-R854/YLW WF-R856/YLP WF-R856/YLW WF-R861/YLP WF-R861/YLR WF-R861/YLW WF-R862/YLP WF-R862/YLR WF-R862/YLW WF6520N7W/YLP WF6520N7W/YLW WF6520S4V/YLR WF6520S4V/YLW WF6520S6V/YLP WF6520S6V/YLR Samsung WF6520S6V/YLW WF6520S7W/YLP WF6520S7W/YLR WF6520S7W/YLW Samsung WF6520S9C/YLP WF6520S9C/YLW WF6520S9R/YLP WF6520S9R/YLW WF6528N4W/YLW WF6528N6W/YLW WF6528N7W/YLP
