SPD000LG *Spider стиральной машины LG Cod 712 4434ER1001B sleeveØ37мм H130мм bearing 205/206 oil seal37x66x9,5/12 4434ER1003G

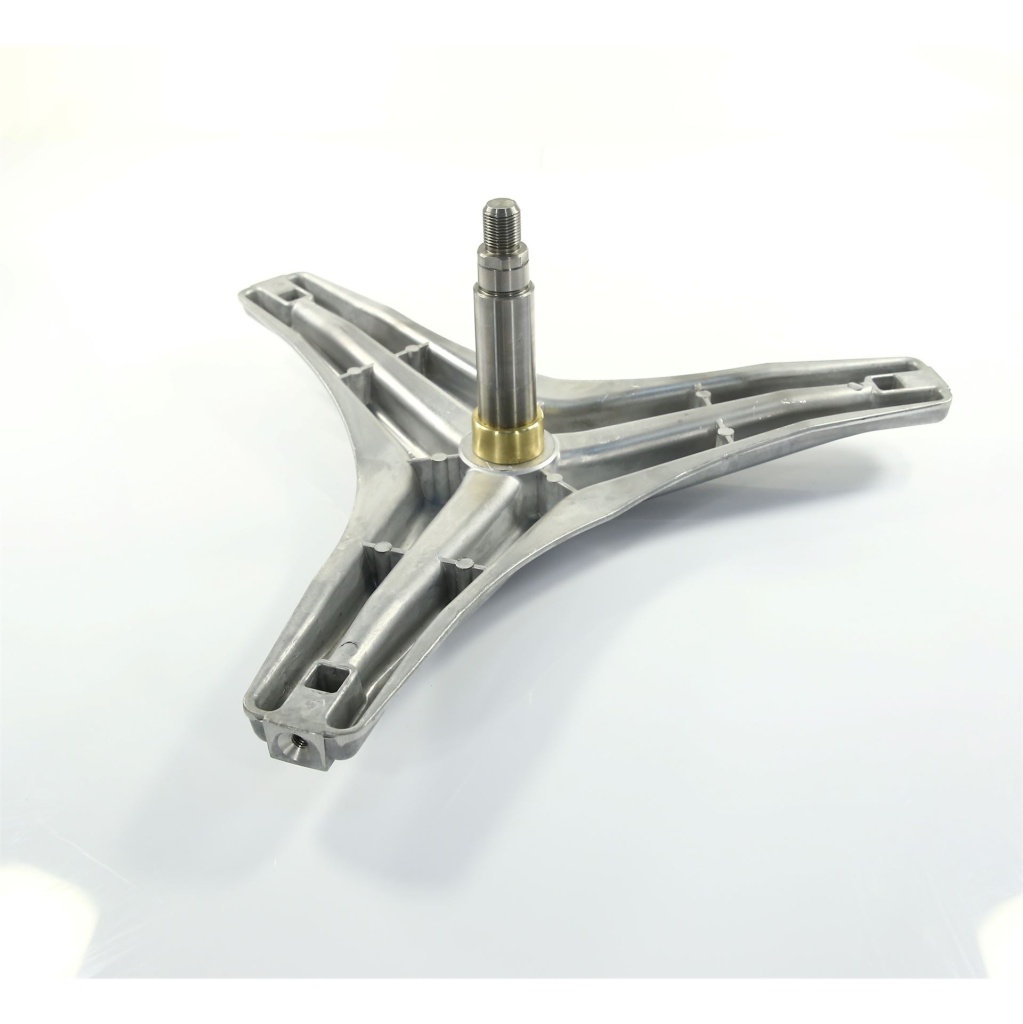

*Spider стиральной машины LG Cod 712 4434ER1001B sleeveØ37мм H130мм bearing 205/206 oil seal37x66x9,5/12 4434ER1003G photo 1 -

Превью запчасти *Spider стиральной машины LG Cod 712 4434ER1001B sleeveØ37мм H130мм bearing 205/206 oil seal37x66x9,5/12 4434ER1003G photo 1 -

Code: 5910 | Art: SPD000LG

under the order

Characteristics

Manufacturer

—

Country of origin

—

China

Compatible models

—

4434ER1003G

Model

—

Cod 712 4434ER1001B

Shaft length

—

130

All characteristics

They buy with this product

The LG crosspiece (Cod. 712 4434ER1001B) is the shaft on which the washing machine drum rotates. This part is necessary for the operation of moving structural elements. The bearing assembly, which is attached to the crosspiece, is responsible for the rotation of the drum. It is this part that holds the drum itself, so damage to it can lead to serious damage to the bearings, heating element, drum and tank as a whole. Therefore, it is important to diagnose the malfunction in time and fix the problem in order to prevent further breakdowns. The crosspieces in washing machines of different brands are similar to each other, but still have certain differences. Therefore, if it is necessary to replace the crosspiece, you need to select a suitable element, taking into account both the manufacturer and the model of the automatic machine.

Product characteristics

Manufacturer	LG
Country of origin	China
Compatible models	4434ER1003G
Model	Cod 712 4434ER1001B
Shaft length	130
Bushing for seal	37 mm
Seal size	37x66x9,5/12
Bearing	6205, 6206
Источник	интернет-магазин запчастей https://magsbt.com/

Assessment 5, 32 vote

Collections

All spare parts LGSpare parts for washing machines LGAll drum spider LG

Applicability of the product to models of household appliances

Enter the first characters of the model in the search line below and the list will be filtered.
You can click on the model name to search for all spare parts for this model of equipment.

WD-10150FB.AOWPTSK WD-1054FB.AOWPBWT WD-1056FB.* WD-1074FB.AOWPBWT WD-1090FB.AOWPBWT WD-80130F.AOWPEAK WD-80130F.AOWPTSK WD-8054FB.AOWPBWT WD-8074FB.AOWPBWT WD-8090FB.AOWPBWT WDS10130F.* WDS80130F.* WDS8054FB.* WD-11230FB.AOWPEAK WD-1256FB.AMSPBWT WD-1274FB.AOWPBWT WD-1276FB.AMSPBWT WD-1290FB.AOWPBWT WD-13235FB.AMSPEAK WDS1054FB.* WDS1256FB.* WD-10150FB WD-1054FB WD-1056FB WD-1074FB WD-1090FB WD-11230FB WD-1256FB WD-1274FB WD-1276FB WD-1290FB WD-13235FB WD-80130F WD-8054FB WD-8074FB WD-8090FB WDS10130F WDS1054FB WDS1256FB WDS80130F WDS8054FB.
