Code: 20772 | Art: PYEZ1R05J5
under the order
Characteristics
Manufacturer
—
CAREL
Country of origin
—
Italy
Additional information
—
PYEZ1R05J5 (974)
Number of sensors
—
2 sensors
Number of relays
—
1 relay
All characteristics
They buy with this product

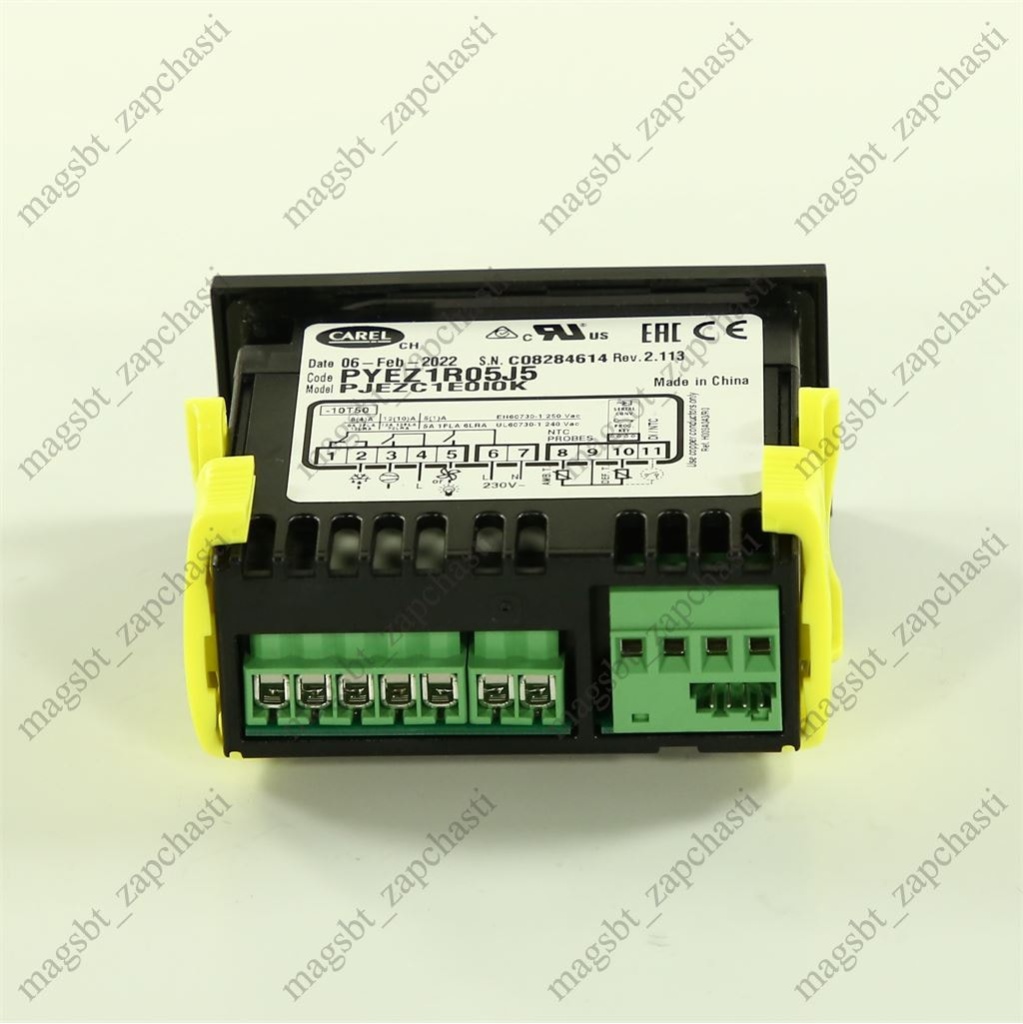

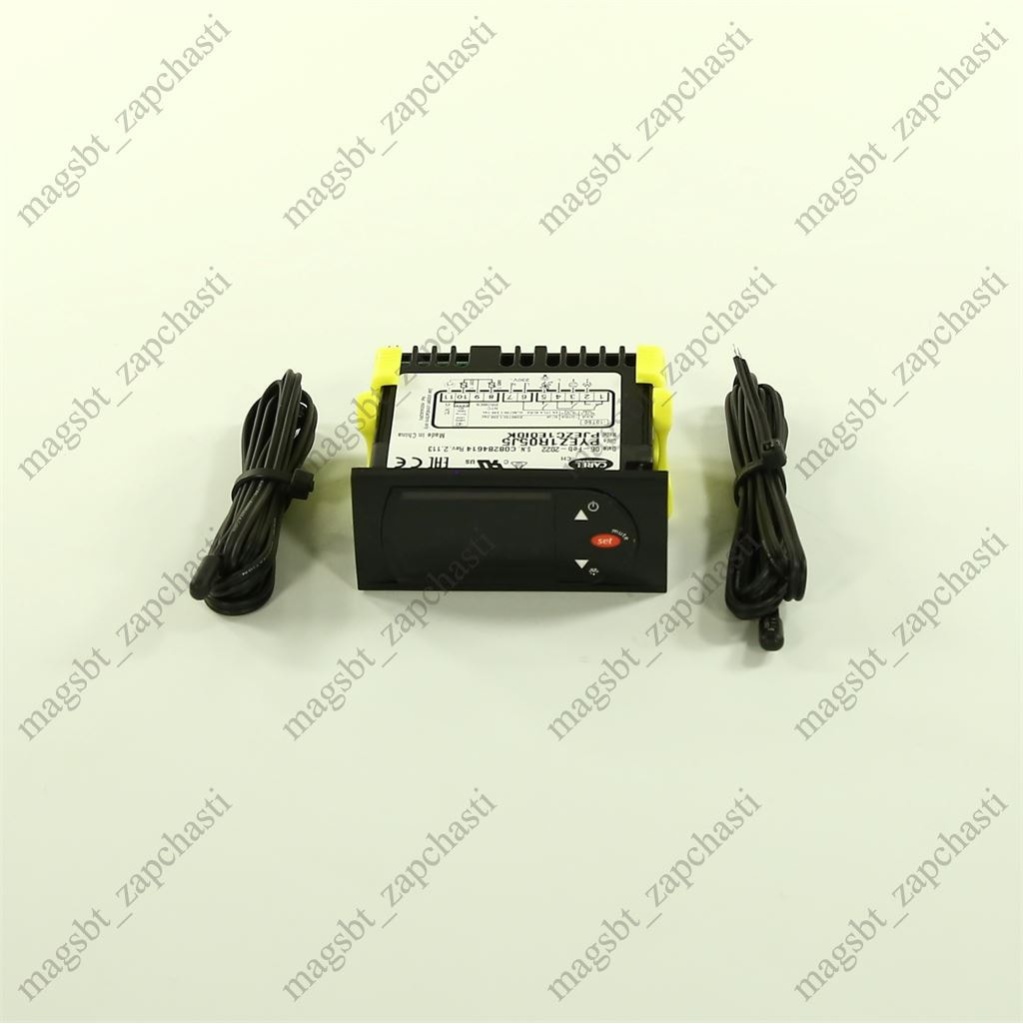

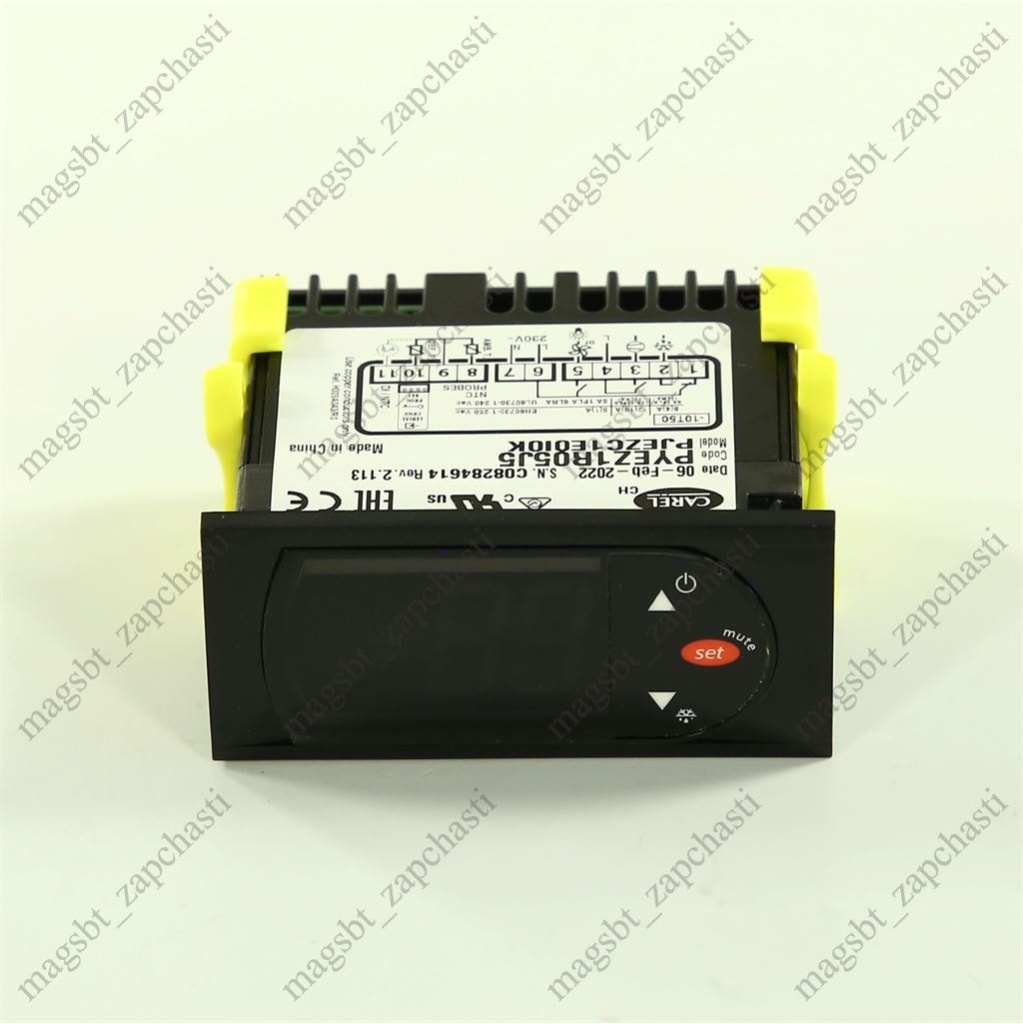

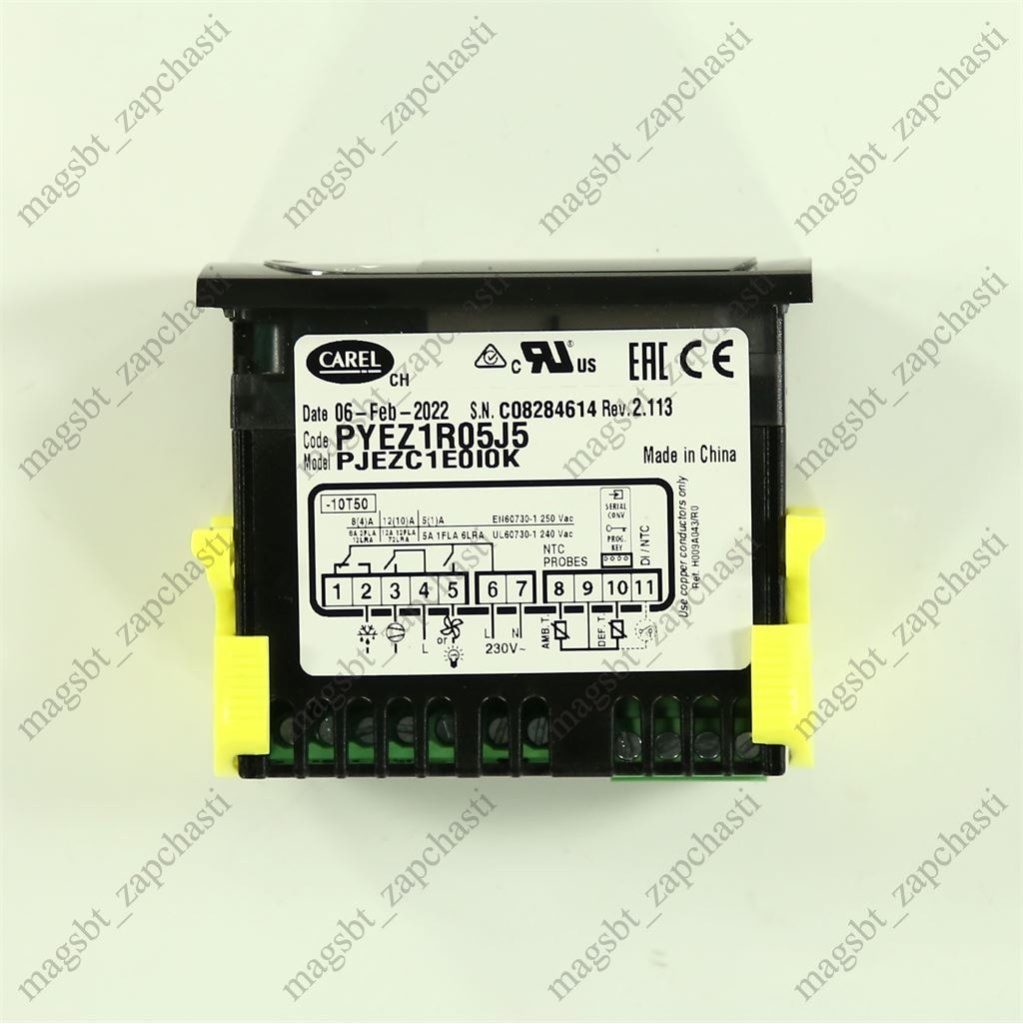

Control unit CAREL PYEZ1R05J5 230VAC 2 sensor 12A - 3 relay controller (analogue ID 974) complete with 2 NTC015HP00 sensors. Controller for refrigeration units from the BASIC series with defrost function.
Characteristics:
Power: 230V AC +10/-15% 50/60 Hz.
Rated power: 3.5 VA.
Inputs: NTC sensors, 1 or 2 inputs, digital input for third sensor.
Connection: screw terminals for cables with a cross-section from 0.5 mm2 to 1.5 mm2. Max. nom. current through contact 12 A.
Display: 2-position LED display with '-' sign, numbers -99 to 99, decimal point.
Operating conditions: -10 to 50°C, relative humidity less than 90%, no condensation.
Measuring range: -50 to 90°C (-58 to 194°F), discrete 0.1 °C/°F.
PTI coefficient of insulating materials: 250 V.
Number of automatic relay switching cycles: 100,000 cycles.
Characteristics:
Power: 230V AC +10/-15% 50/60 Hz.
Rated power: 3.5 VA.
Inputs: NTC sensors, 1 or 2 inputs, digital input for third sensor.
Connection: screw terminals for cables with a cross-section from 0.5 mm2 to 1.5 mm2. Max. nom. current through contact 12 A.
Display: 2-position LED display with '-' sign, numbers -99 to 99, decimal point.
Operating conditions: -10 to 50°C, relative humidity less than 90%, no condensation.
Measuring range: -50 to 90°C (-58 to 194°F), discrete 0.1 °C/°F.
PTI coefficient of insulating materials: 250 V.
Number of automatic relay switching cycles: 100,000 cycles.
Product characteristics
Manufacturer | CAREL |
Country of origin | Italy |
Additional information | PYEZ1R05J5 (974) |
Number of sensors | 2 sensors |
Number of relays | 1 relay |
Relay power, A | 12 |
Voltage | 230V |
Block application method | Compressor control and refrigerator defrost control |
Источник | интернет-магазин запчастей https://magsbt.com/ |
